To view this vessel or for additional information, please contact Brad Marchant, at +1 604-518-3430. Available seven days a week.
| Location | Coal Harbour, BC |
|---|---|
| Condition | Used |
| Category | Racers and Cruisers |
| Overall Length | 35' 4" |
| Year | 2023 |
| Hull Material | Fiberglass |
| Hull Beam | 11' 9" |
| Engine Power | 29 HP |
| fresh water | 1 x 61 gal | |
|---|---|---|
| fuel | 1 x 34.34 gal |
| Make & Model | Yanmar 3YM30AE |
|---|---|
| Type | Inboard |
| Fuel | diesel |
| Year | 2023 |
| Power | 29 horsepower |
| Hours | 400 |
| Transmission | Sail |
• Design according to CE certification
• Monolithic hull in polyester
• Monolithic structural hull liner bonded to the hull
• Fibreglass and balsa wood sandwich contact deck, with diamond
pattern non-slip coating
• Hull-deck joint screwed, bonded and trimmed with toerail
• Cast iron keel
• 2 rudders with stainless steel stock
• Grey hull gelcoat
RIGGING
• Standard mast 9/10 anodized aluminum deck stepped, 2 aft-swept spreaders - Without backstay
• Anodized aluminum boom
• Discontinuous stainless steel standing rigging
• Rigid boom vang
• Self-tacking jib rigging with on-deck furler
• Mainsail stay rope on the roof (with 2 chainplates)
• 1 Self-tacking jib track with traveller
• Complete running rigging: Main halyard, Genoa halyard with cleat
on mast, Boom topping lift with cleat on mast, Mainsheet, 1 Self-
tacking jib sheet
• 8 Clutches
• 2 Flag halyards
WINCHES
• 1 Self-tailing winch (H35.2 STA) to port, on the roof
• 1 Aluminum "Speed Grip" winch handle
• 1 Winch handle holder
SAILS
• RF Dacron cross-cut mainsail
• Dacron with UV protection Natural, horizontal cut
• Asymmetrical spinnaker with dousing sock
ADDITIONAL OPTIONS
• 1 Starboard manual (H35.2 STA) rigging winch + Cadet Grey halyard bag
• Polyester bowsprit with integrated anchoring gear and bobstay (for Code 0 and asymmetric spinnaker)
• Asymmetrical spinnaker rigging / Code 0 (sheets, Blocks, Halyards)
• Additional rope clutches
• Rigging run back to cockpit (except boom topping lift)
• 2 Manual (H40.2 STA) genoa sheet winches + Aluminum "Speed Grip" winch handle + Winch handle holder
• Genoa sheet 3D adjustment rings on the roof (replacing the self-tacking jib track and the traveller)
• Genoa on furler, high resistance Dacron (to replace the standard self-tacking jib)

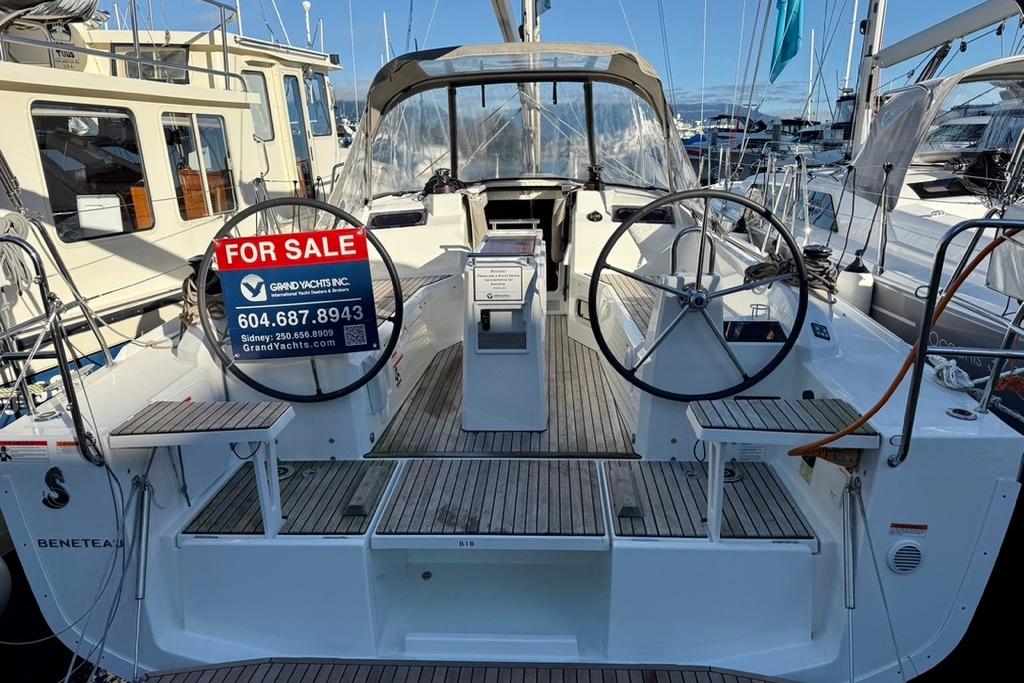

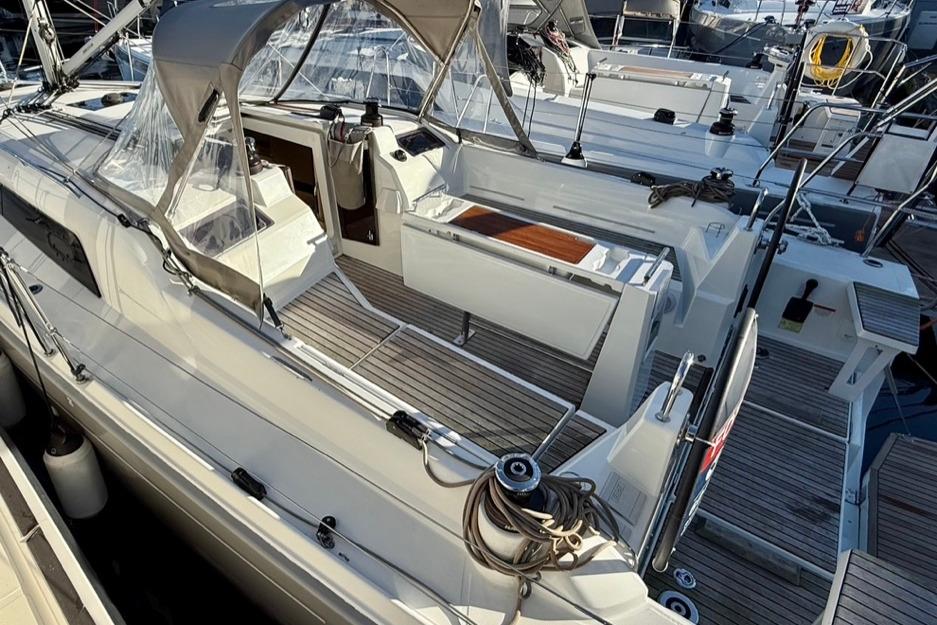

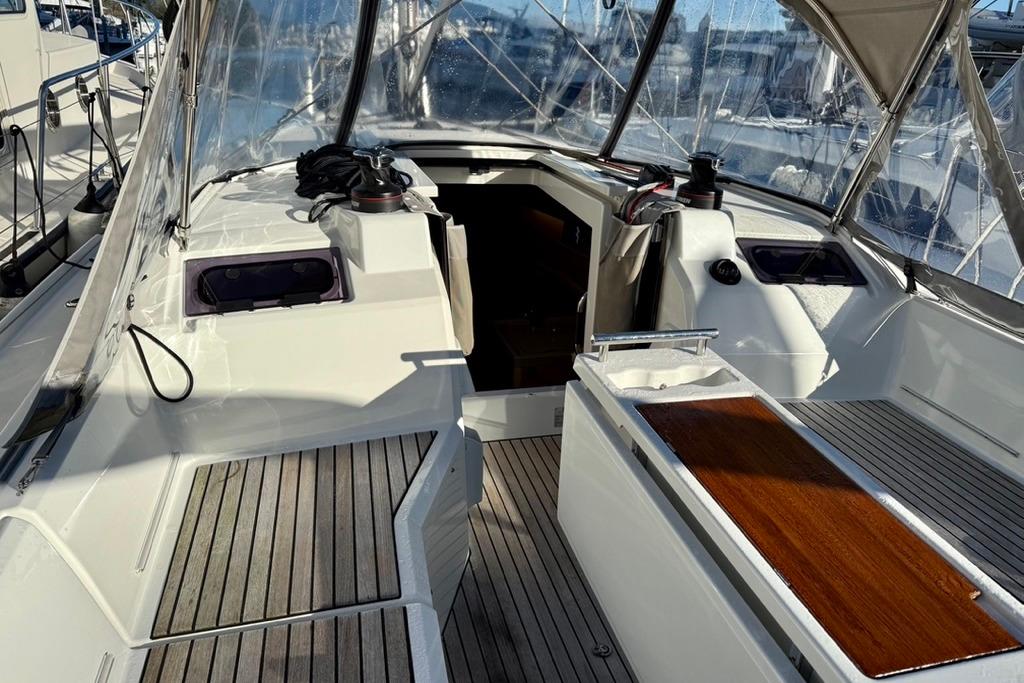

• Self-bailing cockpit
• Cockpit locker under port side bench
• 2 Lockers in cockpit bottom
• Side helm seats (aft helm seats in trim)
• 1 Life-raft locker to aft of cockpit (Usable dimensions: 800 mm x 505 mm x 370 mm / 2’7’’ x 1’8’’ x 1’3’’)
• Natural solid wood slatted cockpit benches
• Polyester drop-leaf cockpit table, Stainless steel handrail
• Stainless steel steering wheels - Leather covered
• 1 Steering compass to starboard of the companionway
• 1 Emergency tiller
• Engine throttle and control panel on starboard
• 2 Hinged PMMA companionway doors - Sliding hatch made of PMMA
• 1 Fixed, telescopic stainless steel swimming ladder
• Fully opening transom, convertible into swim platform
• Manual opening using hoist, assisted by 2 pull cylinders
• Teak decking on swim deck
• 1 Fixed, telescopic stainless steel swimming ladder
COMPANIONWAY
Headroom: 1,89 m / 6’2’’
• GRP salon companionway steps are coated with non-slip surface
• 2 Stainless steel handrails covered with anthracite leather

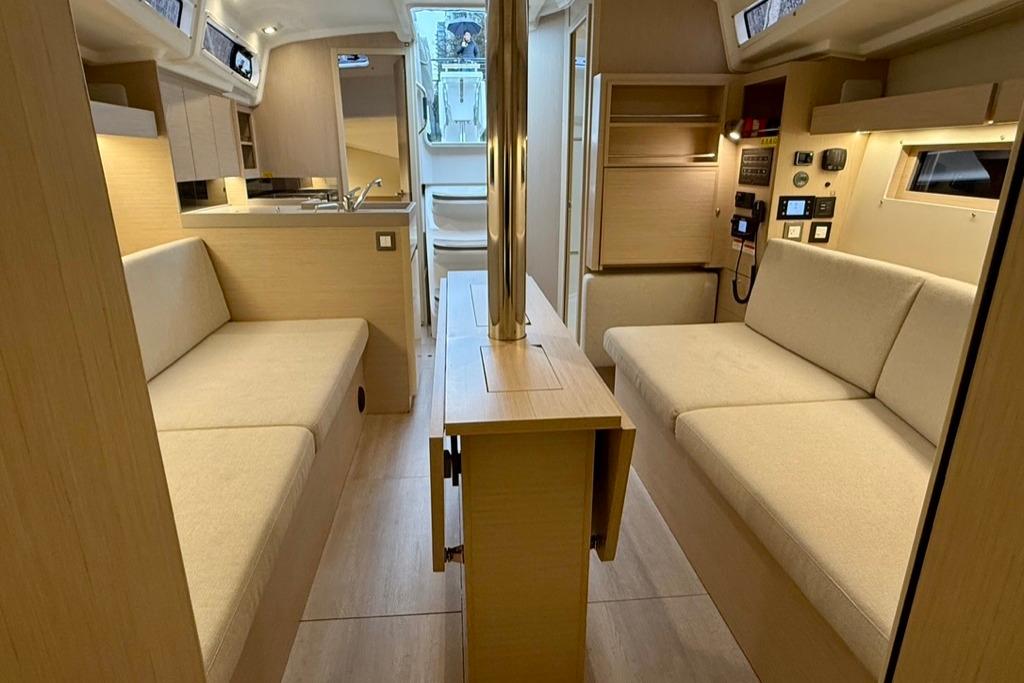

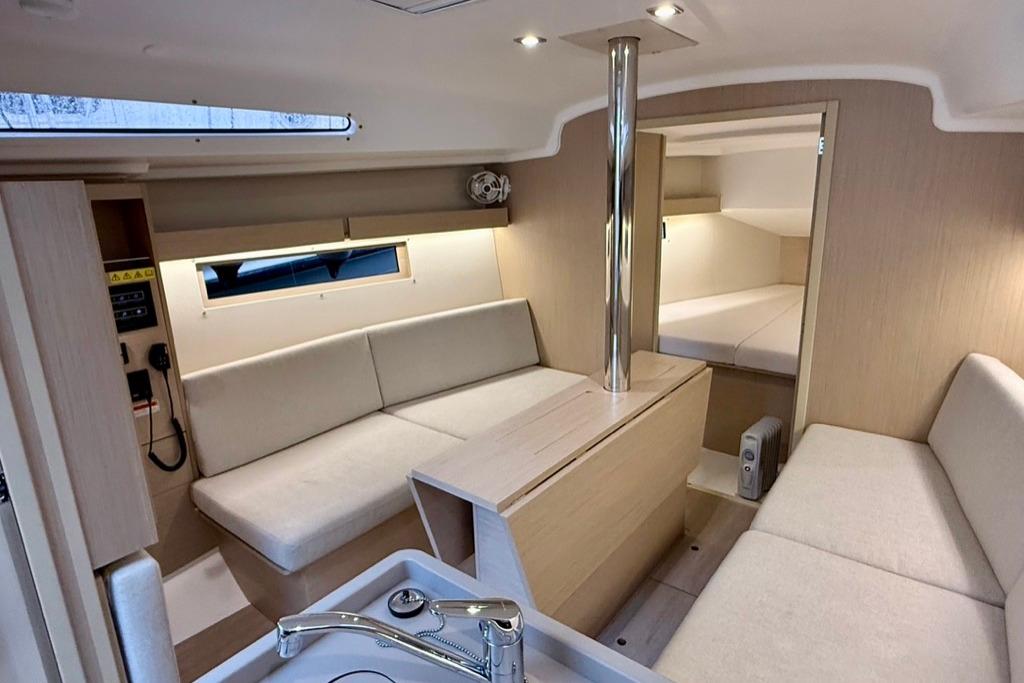

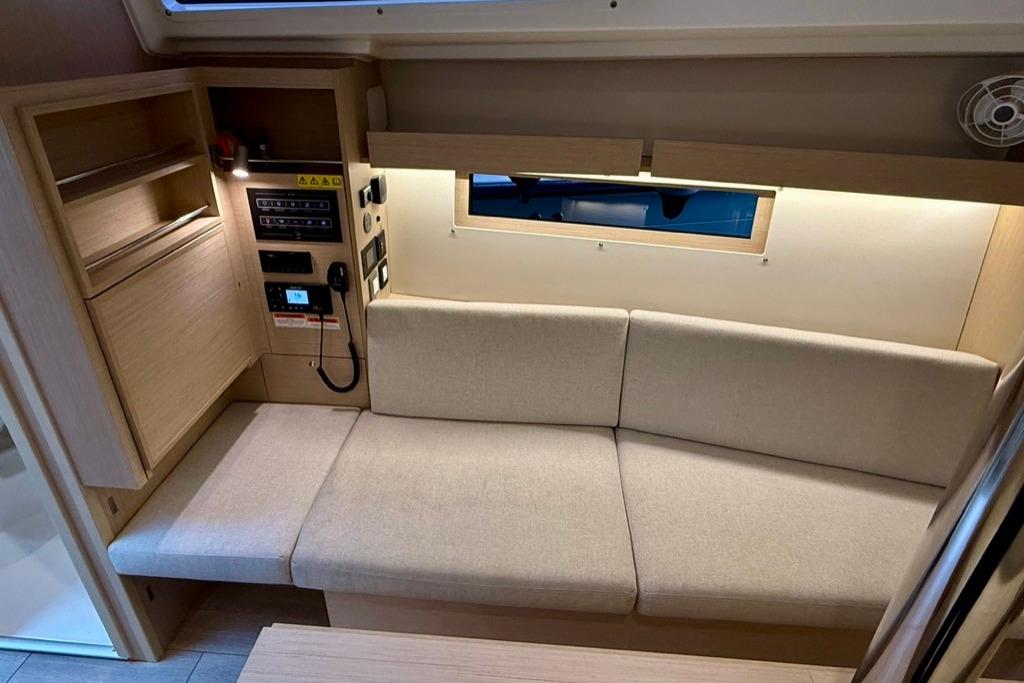

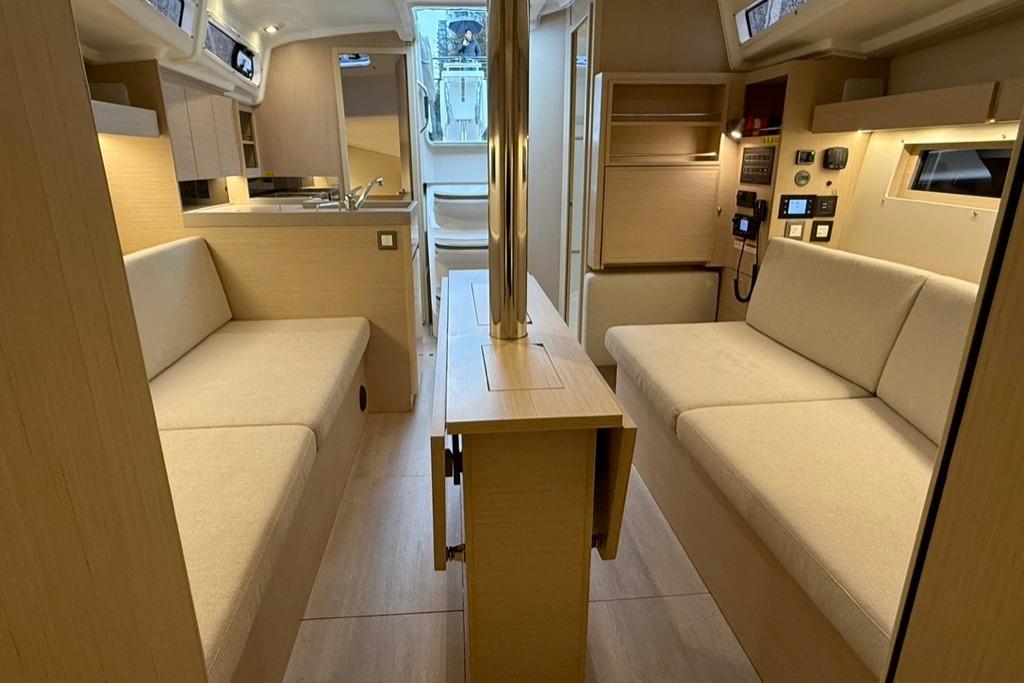

SALON
Headroom: 1,90 - 1,85 m / 6’3’’ - 6’1’’
• 2 Lengthways salon bench sets, can be used as a single berth: an extension cushion for the port side bench seat is stowed against the bulkhead under the chart table
• Chart table with 2 drop-leaves and 2 central top-access storage spaces.
• Storage under bench seats
• 2 LED ceiling lights
• 1 USB socket on the 12V electrical panel
• 2 Panoramic roof windows
• 2 Hull portholes with curtain
• 1 Flush deck hatch with fan, T44, blind and mosquito net

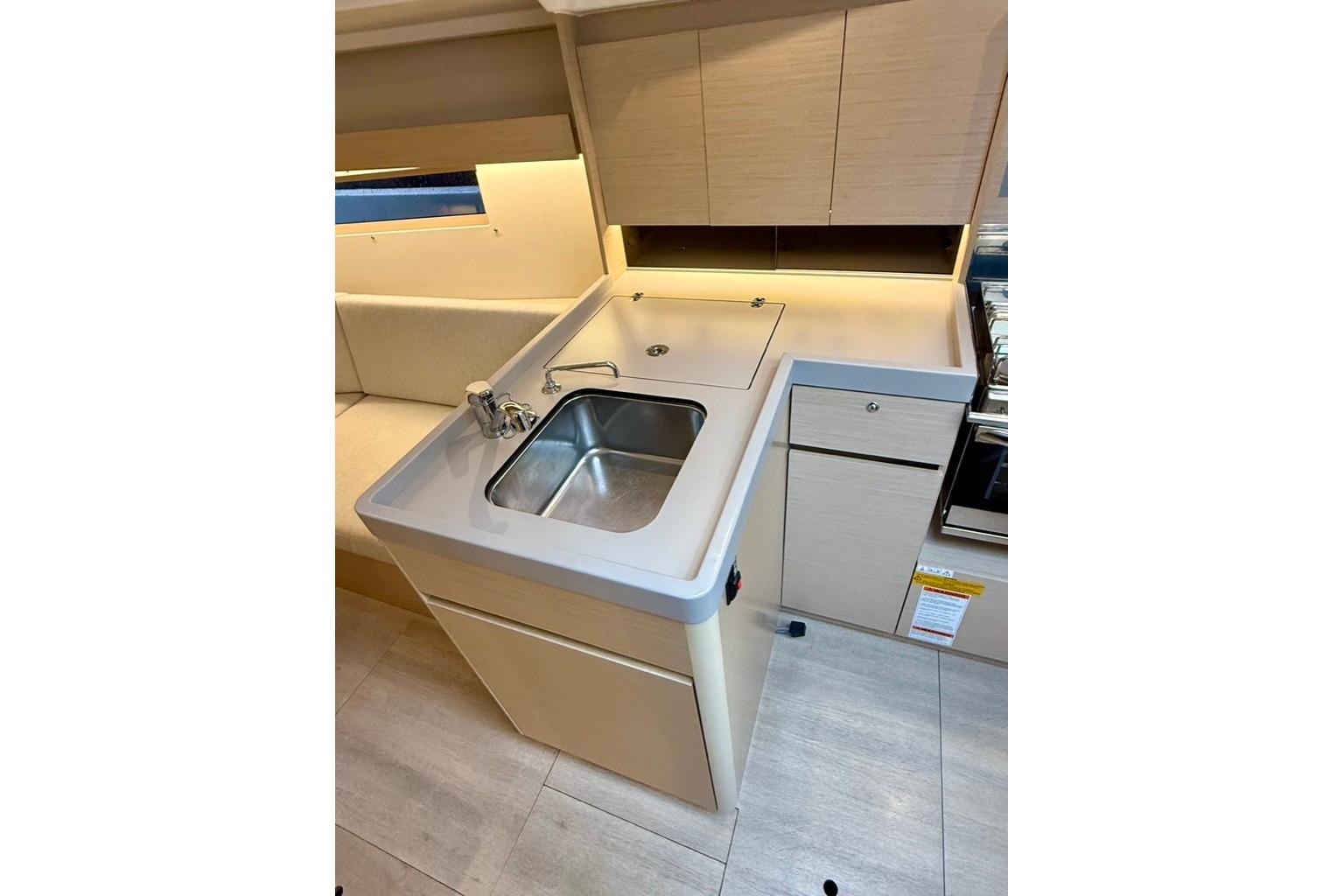

STARBOARD GALLEY
L-shaped kitchen - to starboard
Headroom: 1,85 m / 6’1’’
• Counter top in compact Clay with painted wooden fiddles
• 1 rectangular stainless steel sink (320 mm x 300 mm / 1’1’’ x 1’)
• 1 Faucet with hot/cold water

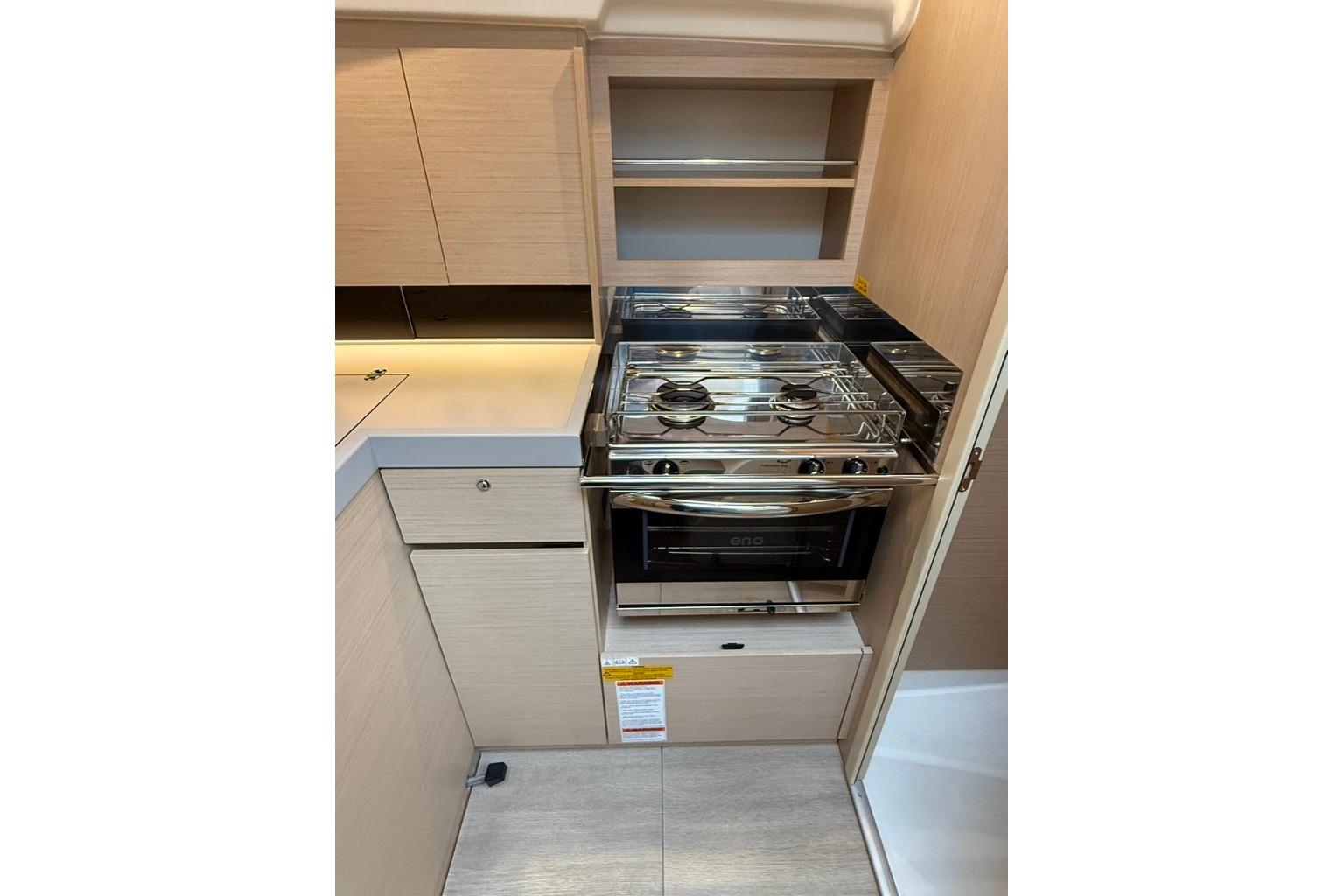

• 1 Gas stove 2 burners - Stainless steel oven on gimbal - Stainless steel protection handrail

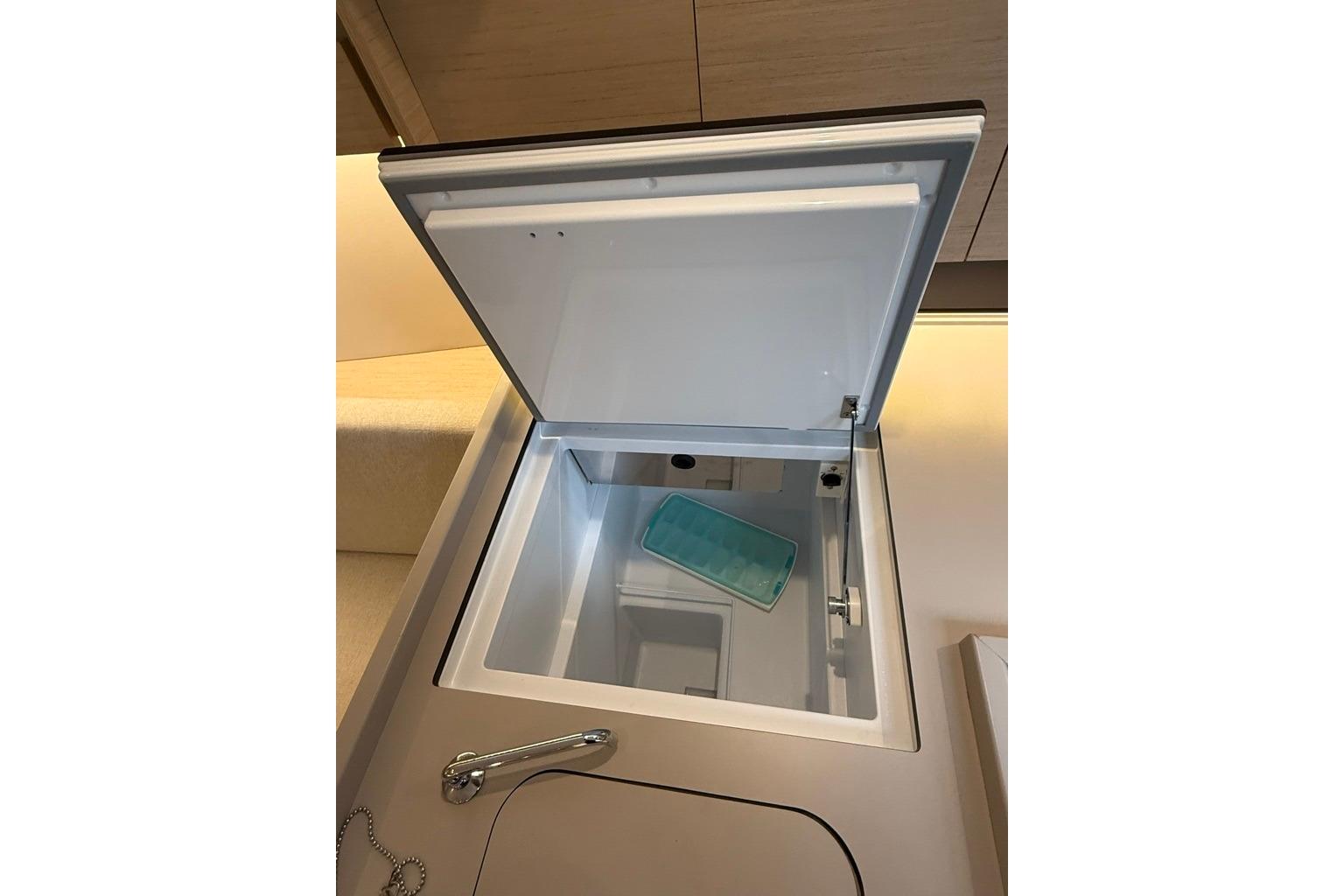

• Cool box 100 L / 26 US Gal top opening
• Storage and lockers
• 1Dual compartment slide-outbin (2x15L/2x4USGal)
• 1 115 V Power outlet
• 1 Opening porthole on coaming in the side window

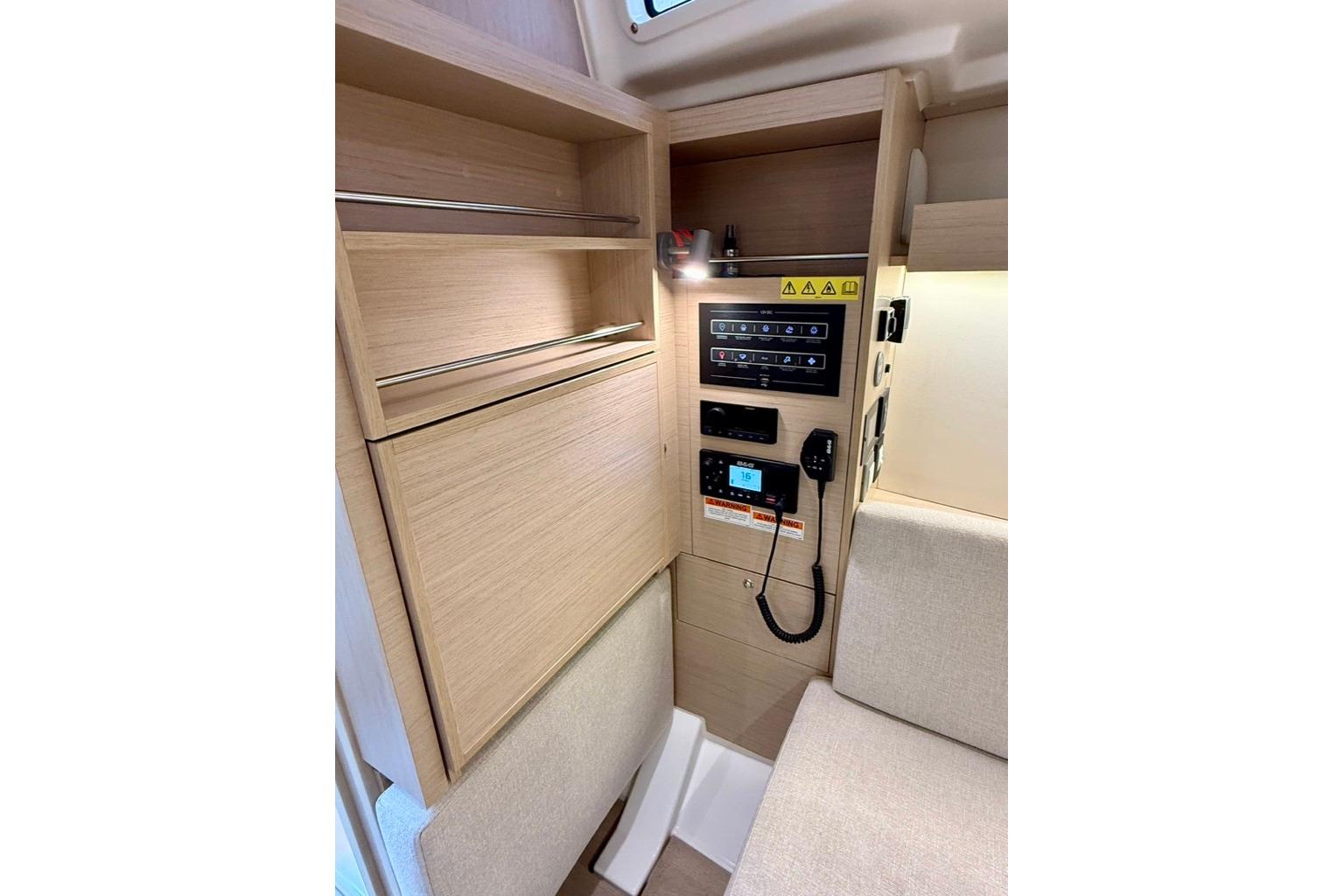

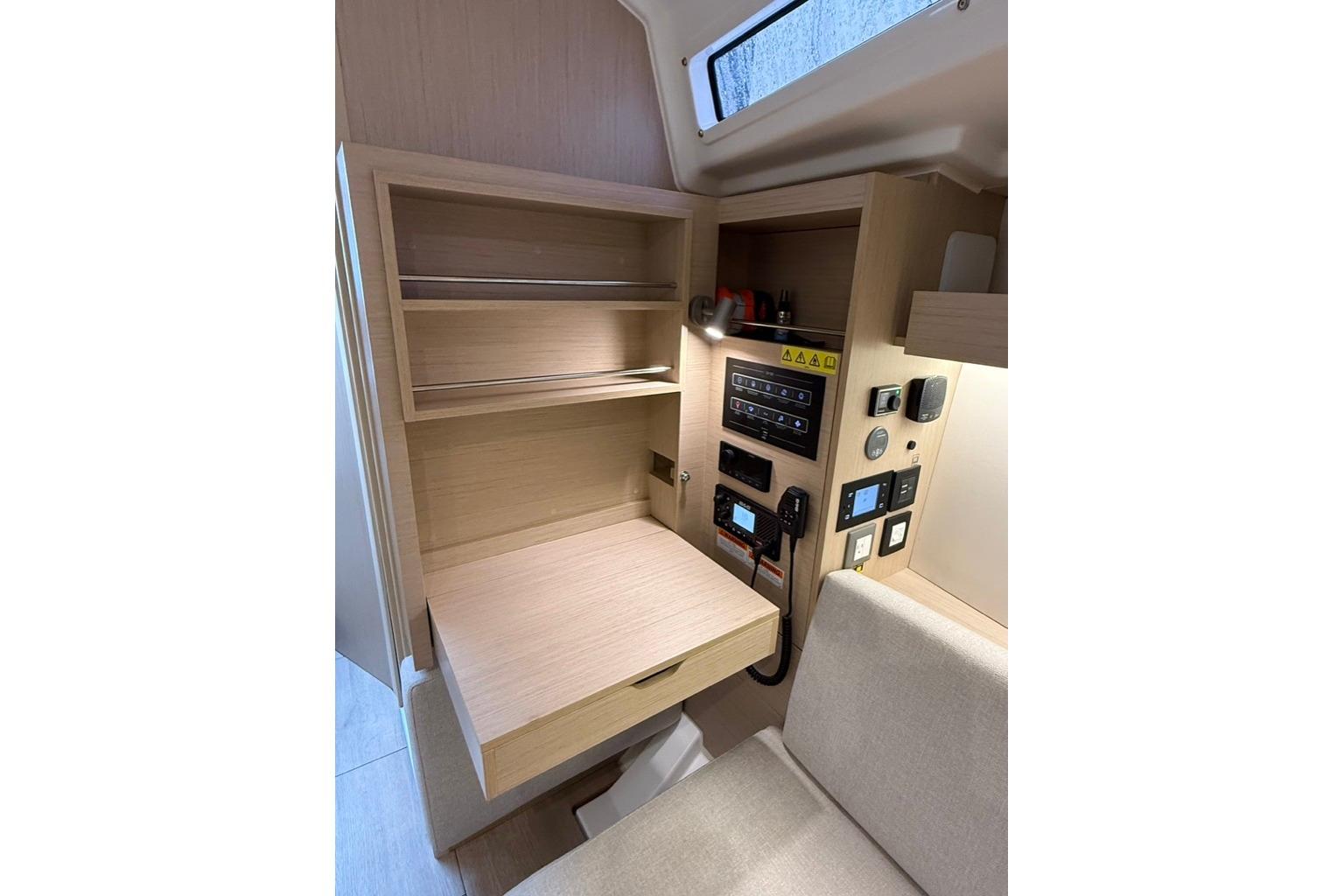

PORT SIDE CHART TABLE
Headroom: 1,85 m / 6’1’’
• Chart table with folding tray against the starboard bulkhead with shelves fitted with fiddles in the upper part

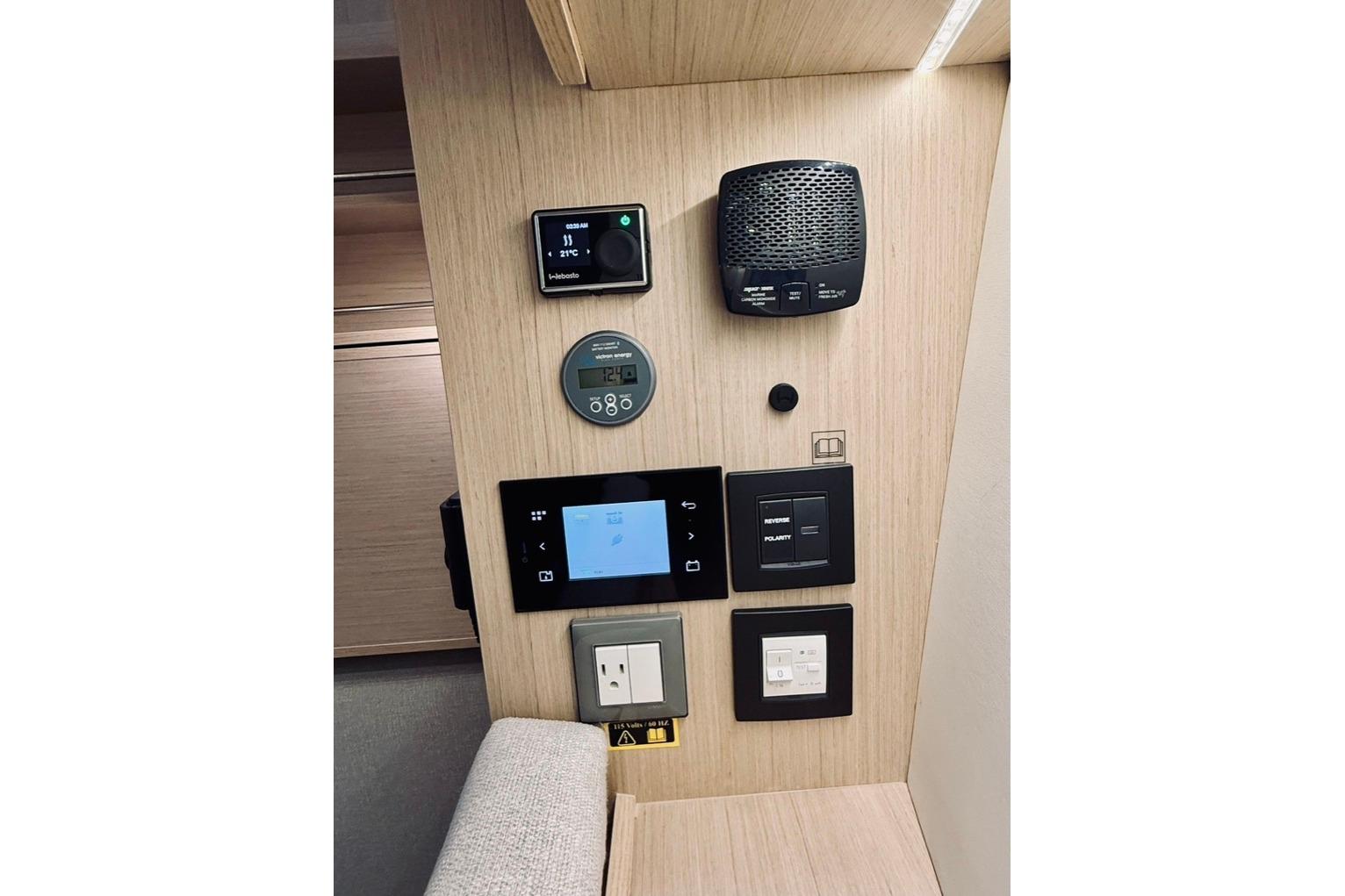

• 12 V electrical panel nearby
• 1 Adjustable LED spotlight
• 1 115 V Power outlet
• 1 Single USB socket
• 1 Fixed coaming window with pleated blind

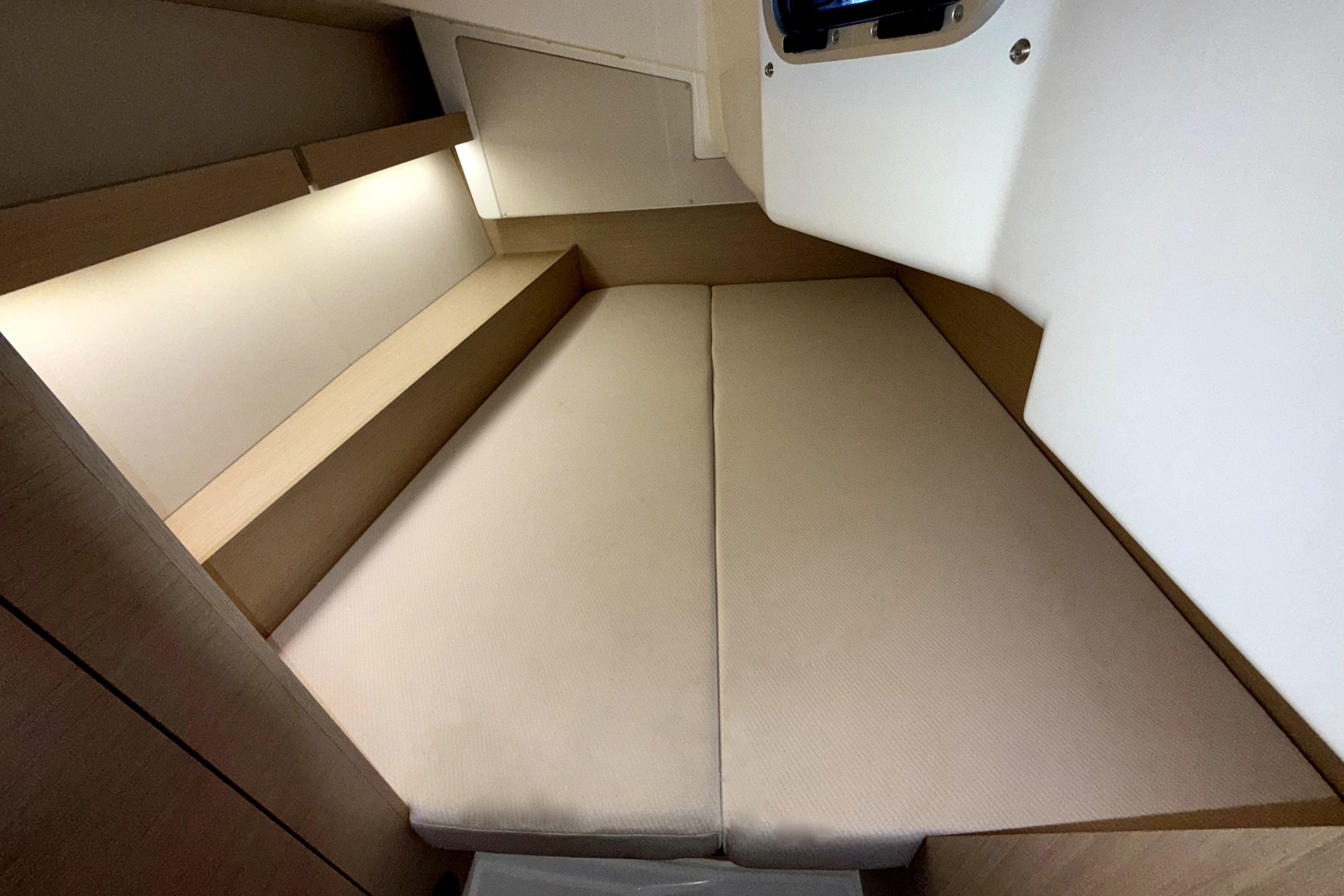

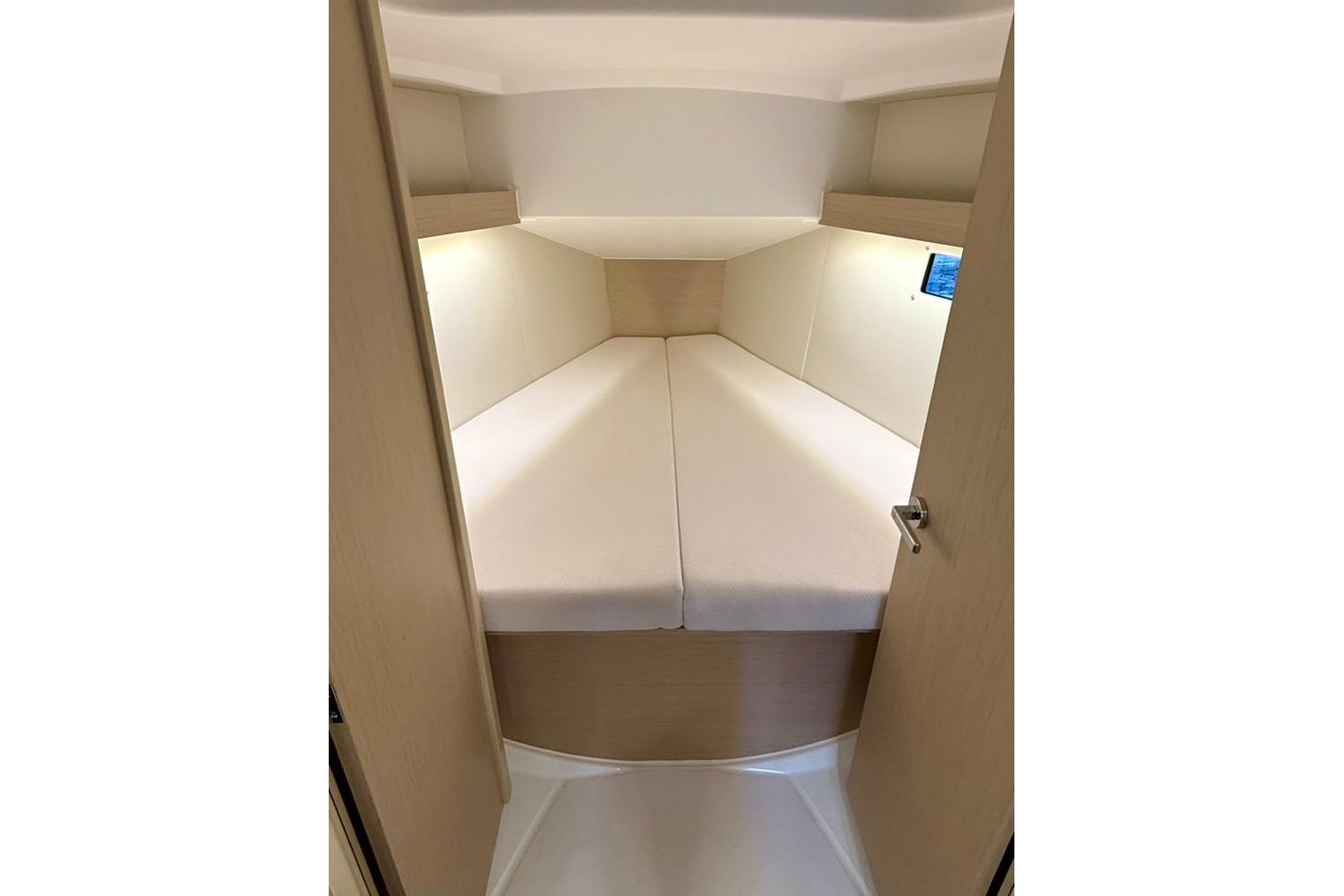

OWNER'S CABIN
Headroom: 1,86 m / 6’1’’
• 1Central double bed (2,02mx1,60m-0,55m/6’8’’x5’3’’- 1’10’’)
• 2 Hanging closets with1 open shelf on top, open lockers along the hull
• 2 Adjustable LED spotlights in the headboard
• 1 dual USB port outlet on each side of the bed
• 1 115 V Power outlet
• 1 Flush deck hatch with fan, T44, blind and mosquito net
• 2 Hull portholes with curtain
• Double door
STARBOARD AFT CABIN
Headroom: 1,80 m / 5’11’’
• 1Double bed(2,00mx1,60mx1,30m/6’7’’x5’3’’x4’3’’)
• 1 Hanging closet with 1 open shelf on the top
• 1 Bed access sideboard
• 2 Adjustable LED spotlights in the headboard
• 1 dual USB port
• 1 115 V Power outlet
• 1 Opening porthole below cockpit seat with curtain

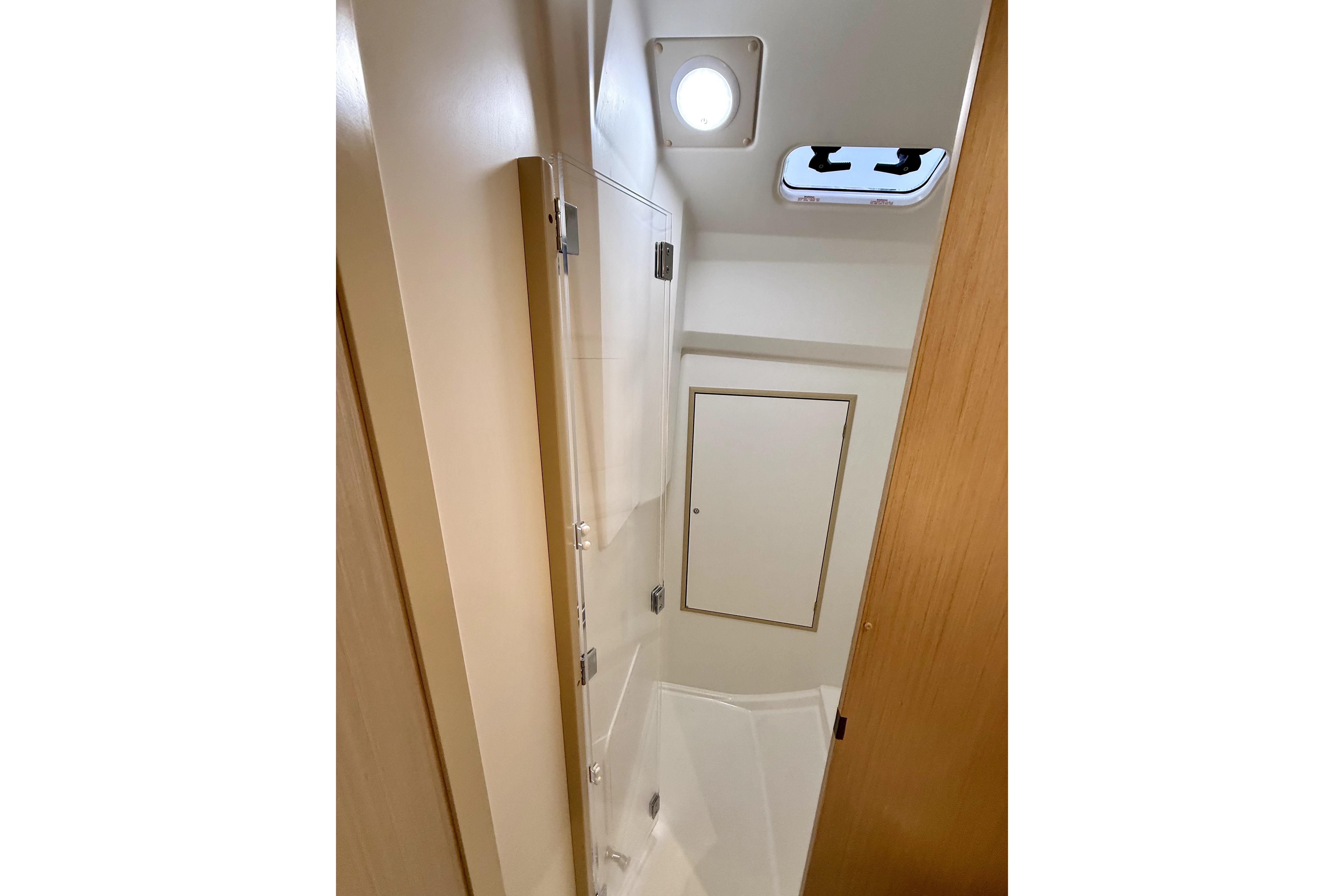

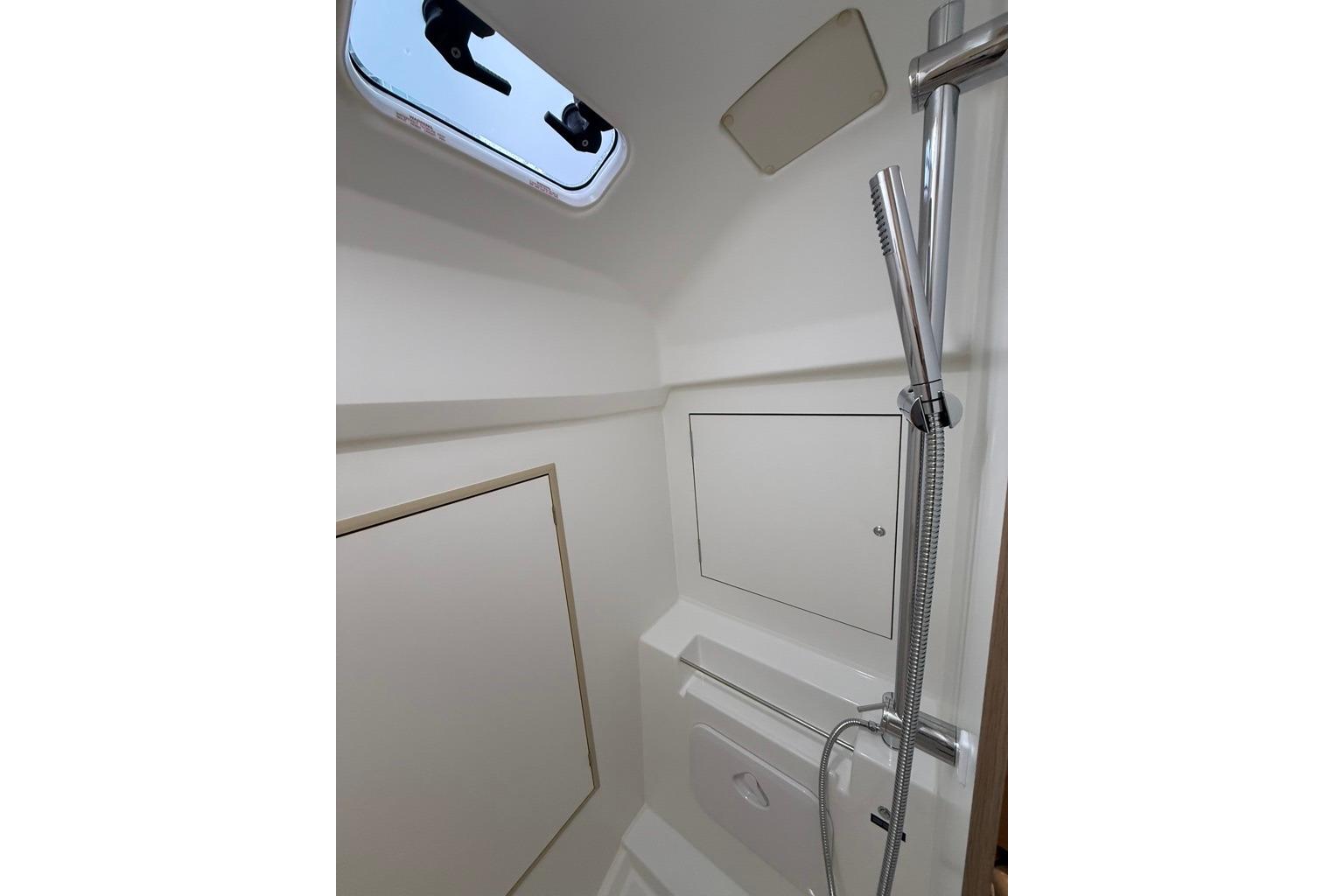

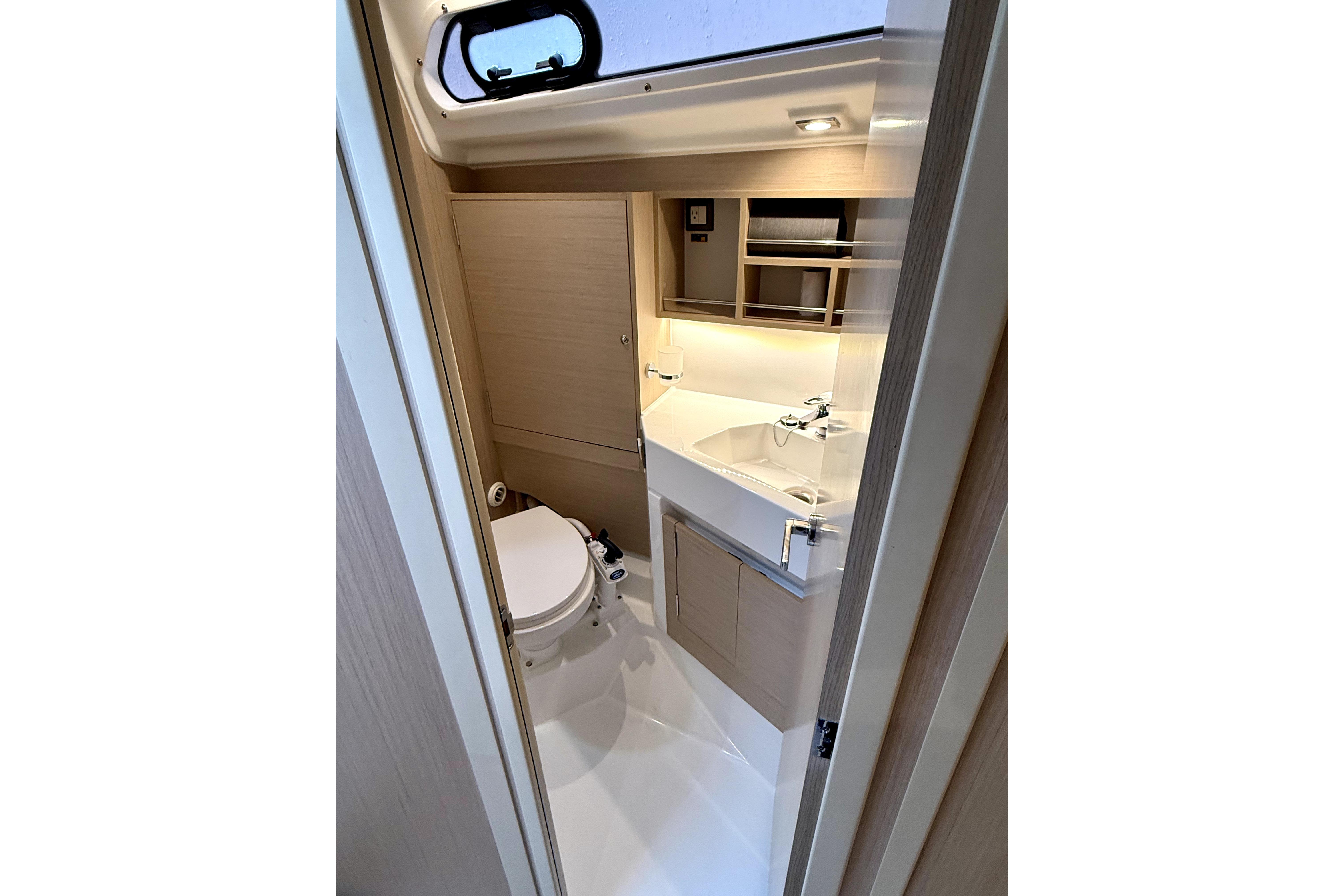

AFT PORT SIDE HEAD
Access through salon
Headroom: 1,92 m / 6’4’’
• Shower with plexiglass door - Self-draining storage bin - 1 hot/cold mixer tap
- White polyester shower base
• 1 Manual marine toilet
• 180L / 21 USGal Rigid holding tank
• 1 Polyester basin - 1 mixing tap hot/cold water
• 1 Cabinet
• 1 Mirror
• Toilet accessories
• 1 Opening porthole in coaming
• 2 LED ceiling lights
• 1 115 V Power outlet

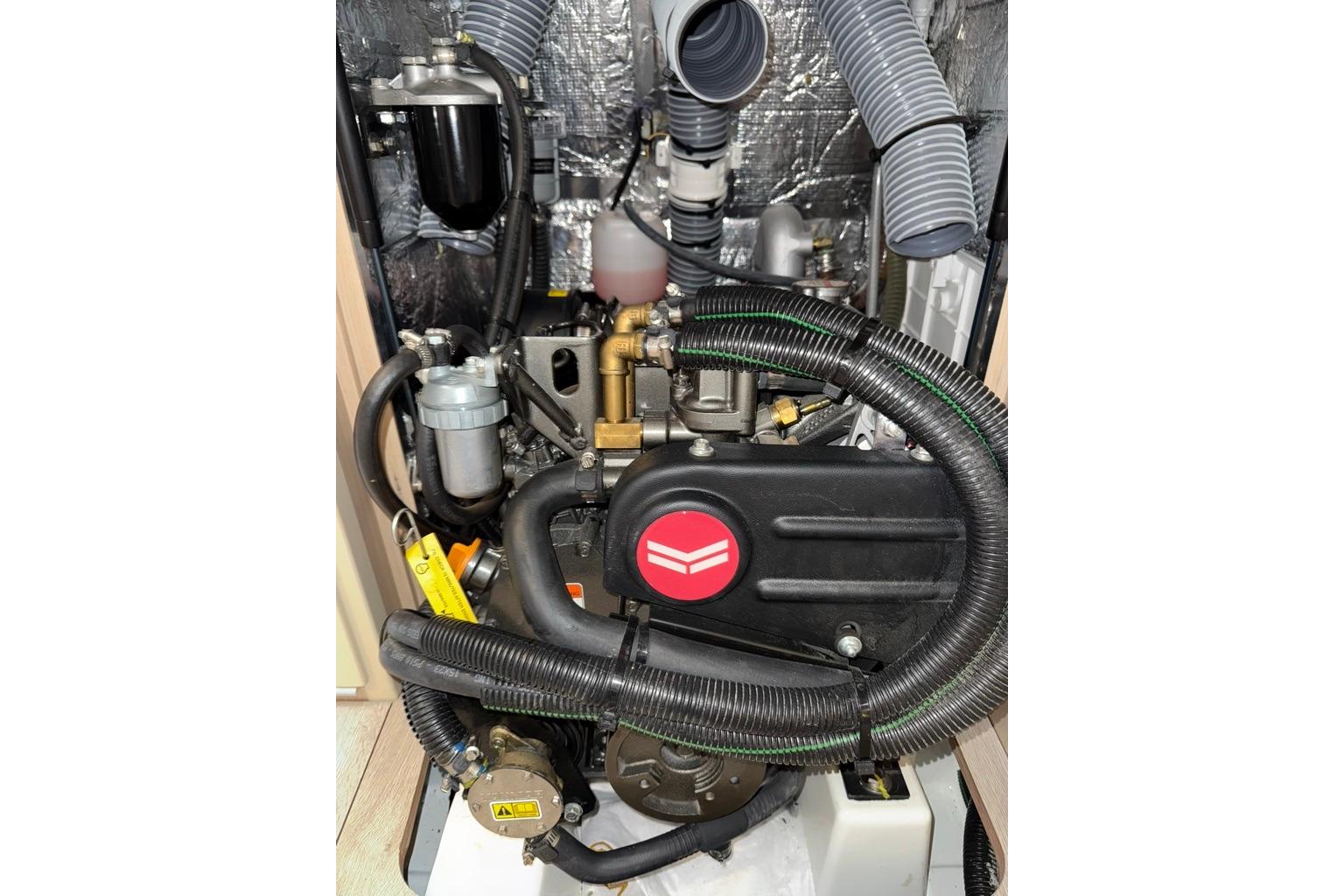

• Engine Yanmar Diesel (Propeller shaft): - 29 CV/HP
• Engine control - Control panel in cockpit (to starboard)
• Engine compartment: Soundproofing foam - Ventilation: 2 air intakes and 1 powered air expulsion
• 1 Alternator (12 V / 125 Amp)
• 1 Rotomolded diesel tank 130 L / 34 US Gal (below aft starboard cabin berth) - Gauge on electrical panel
• Filters: Sea water - Diesel - Water separator
• Stainless steel shaft
• Folding three blade bronze propeller
• 1 Engine access through companionway (opening with 2 gas pistons)
• 2 Access to side engine: Head & Aft cabin
• 1 Rotomolded freshwater tank 206 L / 54 US Gal, under berth in forward cabin
• Electrical gauge on 12 V panel
• 1 Tank filling access
• Water pressure system - Expansion tank - Inline filter
• 25 L / 7 US Gal Electric water heater (engine use) below salon starboard bench
• 180 L / 21US Gal Rigid holding tank
• 1 Electric bilge pump + 1 Manual bilge pump
• 1 Electric shower drain pump
• Propane cylinder locker - starboard aft cockpit
• Regulator with electric controlled solenoid
• Propane detector
• Teak slatted aft platform
• Helm seats, slatted teak
• 1 Halyard bag (to port)
• Cockpit shower hot/cold water
• Galley: Compact sink cover with cutting board
• Fusion Stereo + Interior speakers & Waterproof exterior speakers
• Dual USB socket: in the salon (x 1), in the forward cabin (x 2), in the aft cabins ( x1)
• Shore power 30 amp / 115 AC system with 6 Interior outlets
• 40 Amp battery charger
• 2 AGM service batteries - 100 Amp
• Salon: LED indirect lighting
• Galley: Stainless steel 2 burner oven/broiler cooker on gimbal
• 1000 W Electric windlass + Remote control
• Aft transom protection
• Bow stainless steel protection
• "Luxe" polyester drop-leaf cockpit table
• Outboard engine bracket
• Additional fresh water tank (130 L / 53 US Gal)
• Galley: Sea water foot pump with cool box draining function

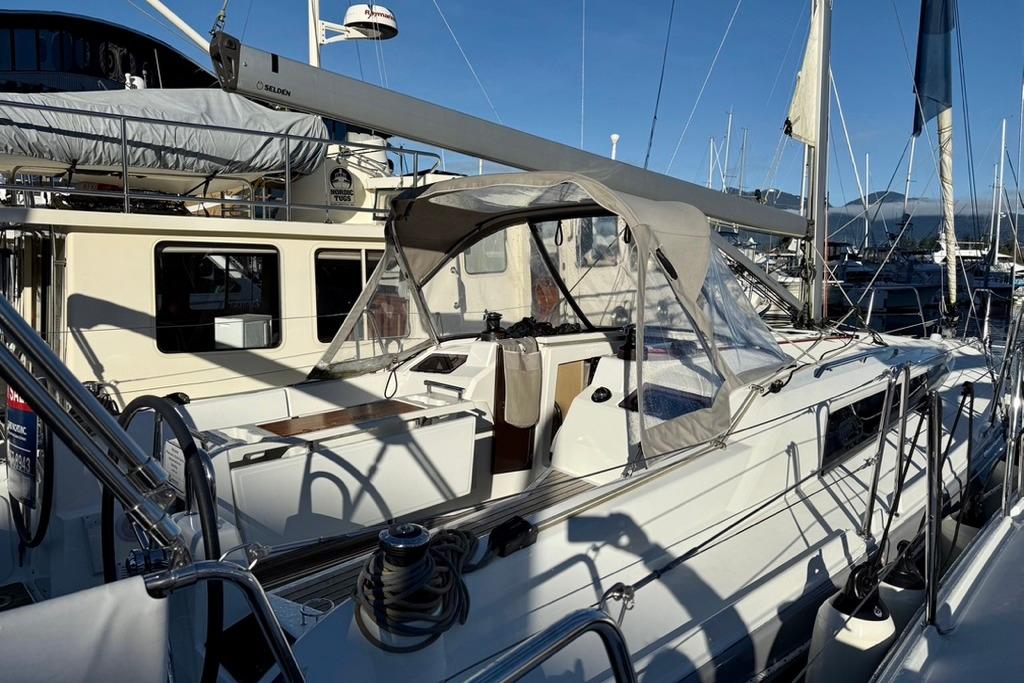

• Dodger and Bimini
• Cockpit cushions
• Bow Thruster
• Diesel Forced Air Heating System (Webasto)
• Wooden companion way steps
• Teak cockpit floor
• 1 Triton2 Graphic display
• Sensor (Log, Speedometer, Temperature)
• Wind Sensor (Windvane, Anemometer)
• Windex Windvane

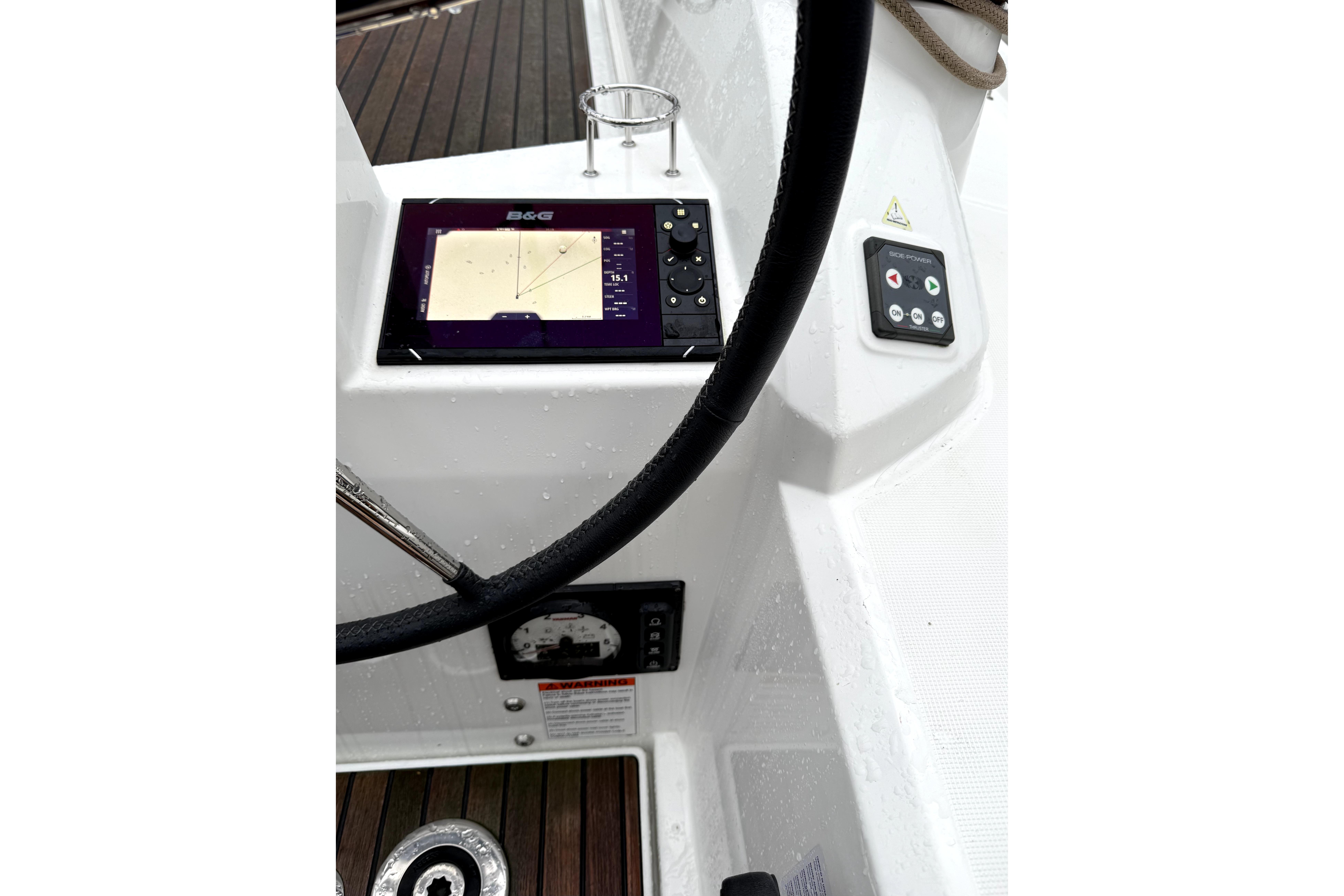

• 1 Multifunction touchscreen Zeus 7’’ wide wireless (GPS, Chart plotter, Card reader - Navionics Silver cartography included)
• NAC3 autopilot + control (to port)
• V60 VHF radio fixed to the chart table + AIS receiver function
