To view this vessel or for additional information, please contact Brad Marchant, at +1 604-518-3430. Available seven days a week.
| Location | Vancouver, BC |
|---|---|
| Condition | Used |
| Category | Racers and Cruisers |
| Overall Length | 49' 2" |
| Year | 2008 |
| Hull Material | Fiberglass |
| Hull Beam | 14' 5" |
| Engine Power | 76 HP |
| fresh water | 1 x 150 gal |
|---|
| Make & Model | Yanmar 4JH4-TE |
|---|---|
| Type | Inboard |
| Fuel | diesel |
| Year | 2008 |
| Power | 76 horsepower |
| Hours | 900 |
| Propeller Type | 3 Blade, Bronze |
| Transmission | Sail |
Hull : Solid fiberglass/GRP with structural hull liner, laminated for load bearing and distribution
Deck : fiberglass/GRP balsa sandwich for rigidity
All bulkheads bonded 360 degrees to hull & deck Epoxy/fiber rudder and stock

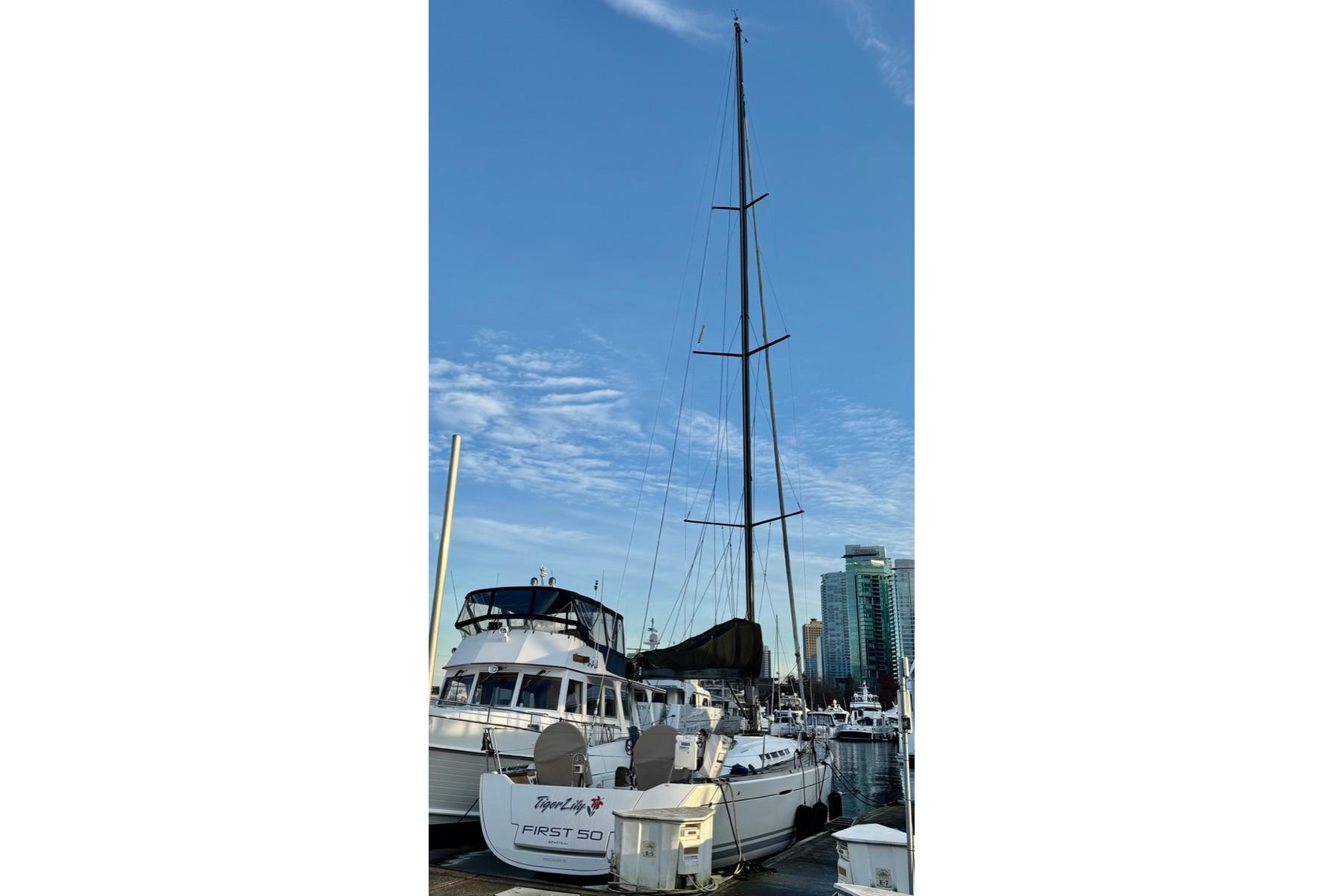

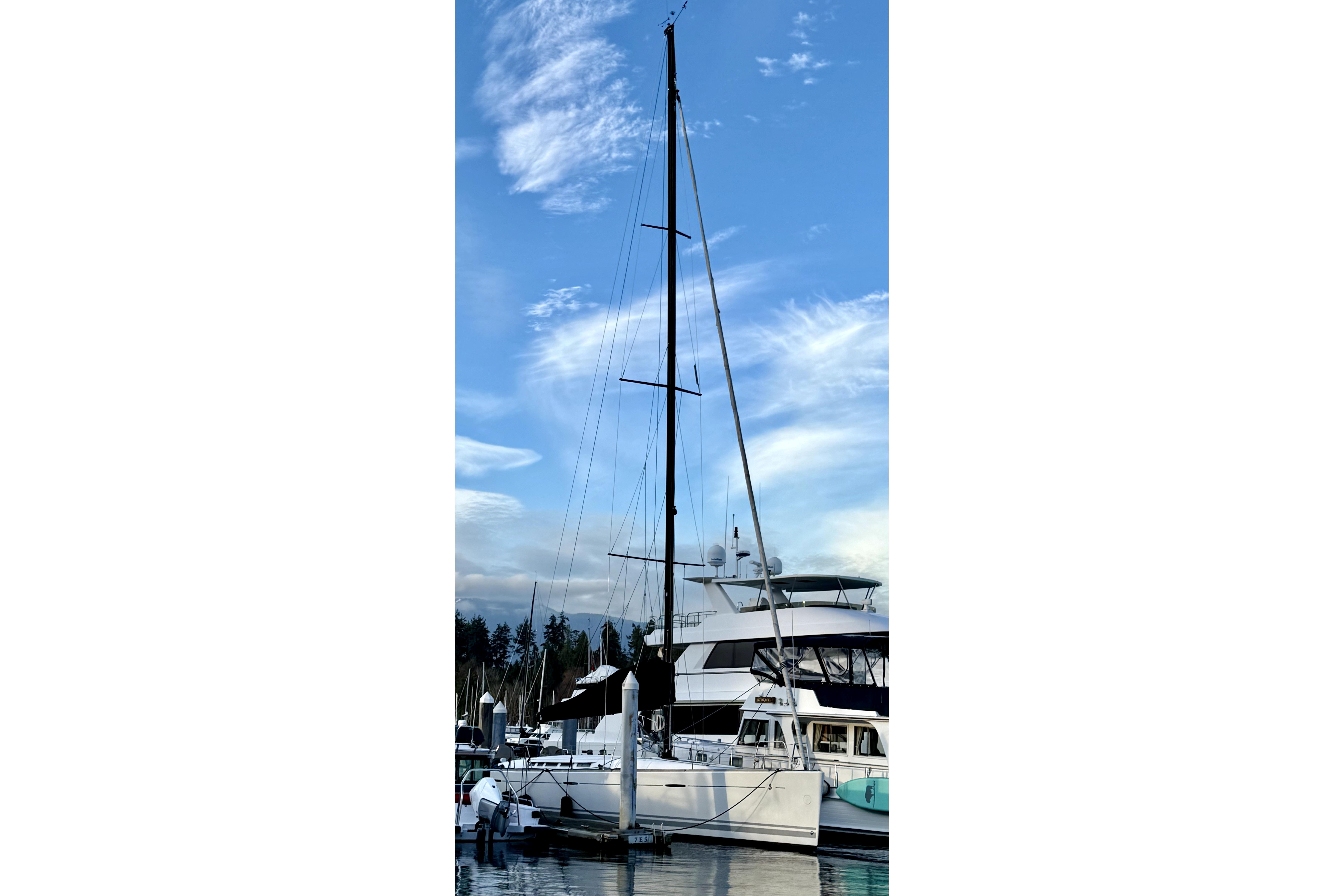

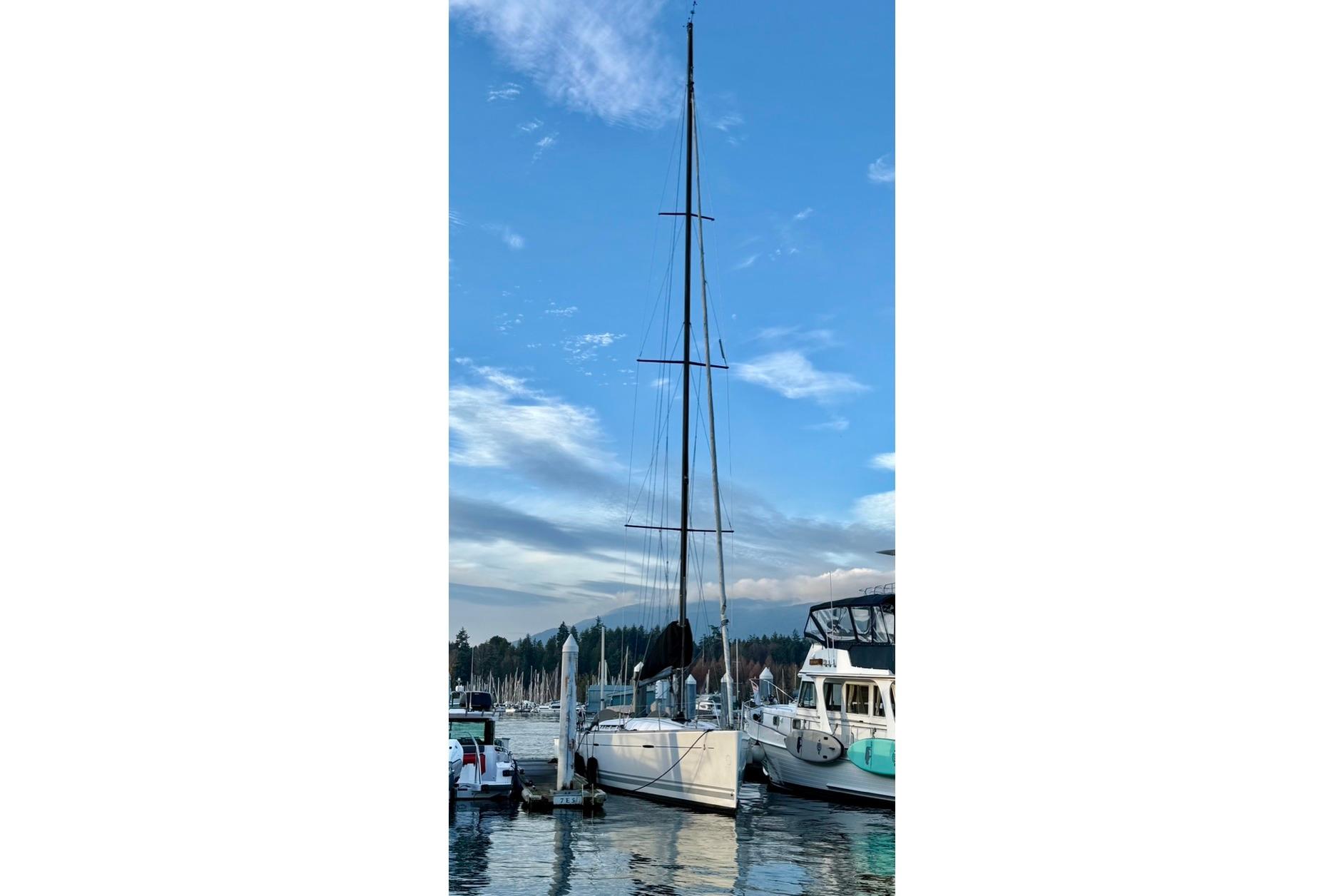

Keel-stepped tapered 9/10 anodised aluminum mast Aft-swept 20° triple spreader mast
Mast gate fitting w/2 feeders
(10) Lead blocks for halyards & sheets around mast gate (3) Folding rungs on mast
Electrical conduit for navigation & anchor lights Anodised aluminum boom & hydraulic boom vang
Dyform discontinuous rigging
(2) Molded stainless steel shroud chain plates on side decks w/tie rods connected to hull structure
Backstay chainplate on structural bulkhead & is adjustable w/hydraulic strut
Forestay held by chainplate in anchor well & fitted w/genoa furler below deck
Running rigging of halyards & comprises: (1) genoa halyard, (1) genoa furling line, (2) genoa sheets, (2) track purchase systems for genoa car, (1) mainsail halyard, (1) mainsail foot outhaul, (1) mainsail sheet in cockpit, (3) reefing lines
All lines are led back to the cockpit and controlled by (6) jammers to port & (6) jammers to starboard
Deck organizers for mast control lines return to cockpit under GRP cover at deck level
(2) Return sheaves on coachroof for control lines on opposite winch

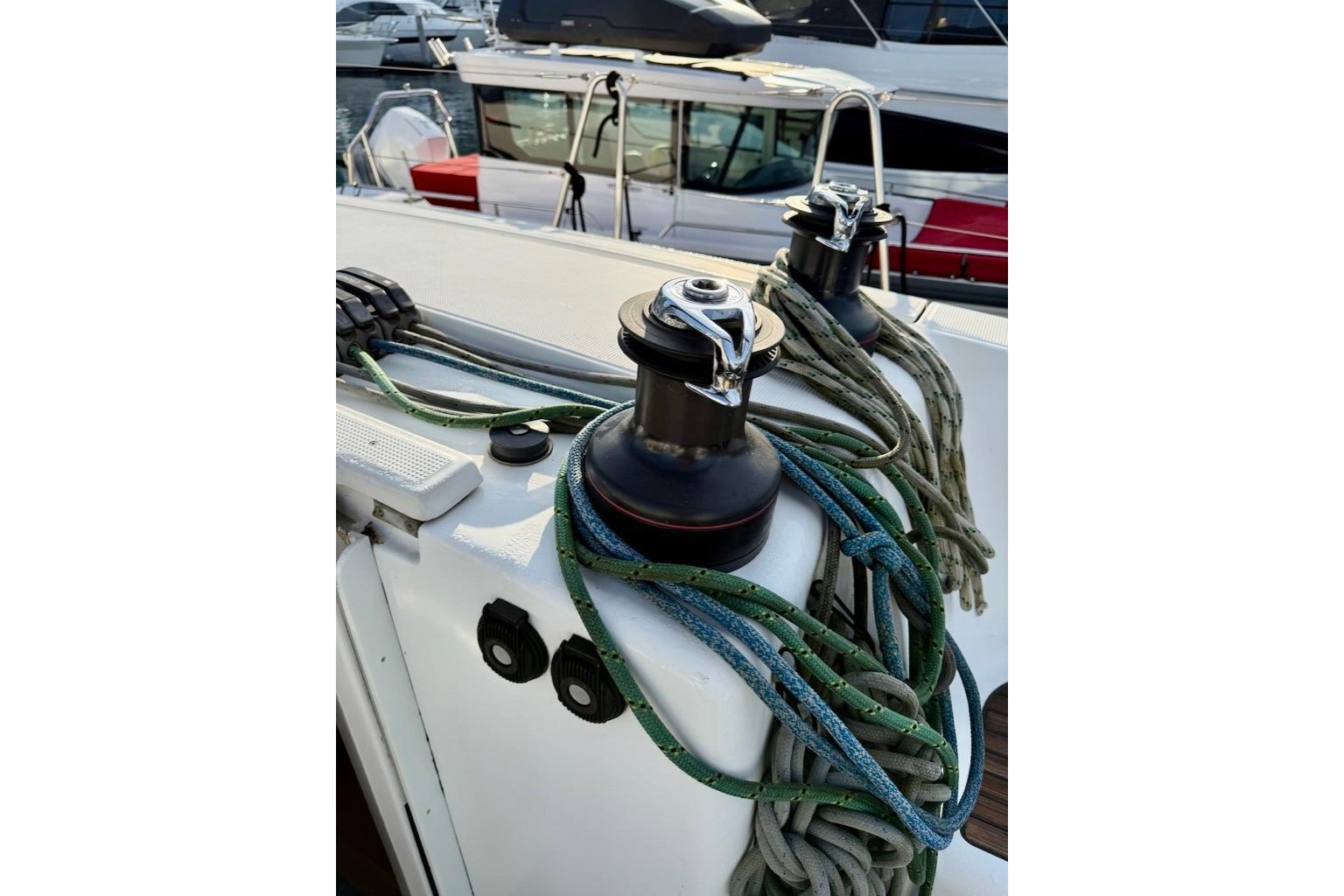

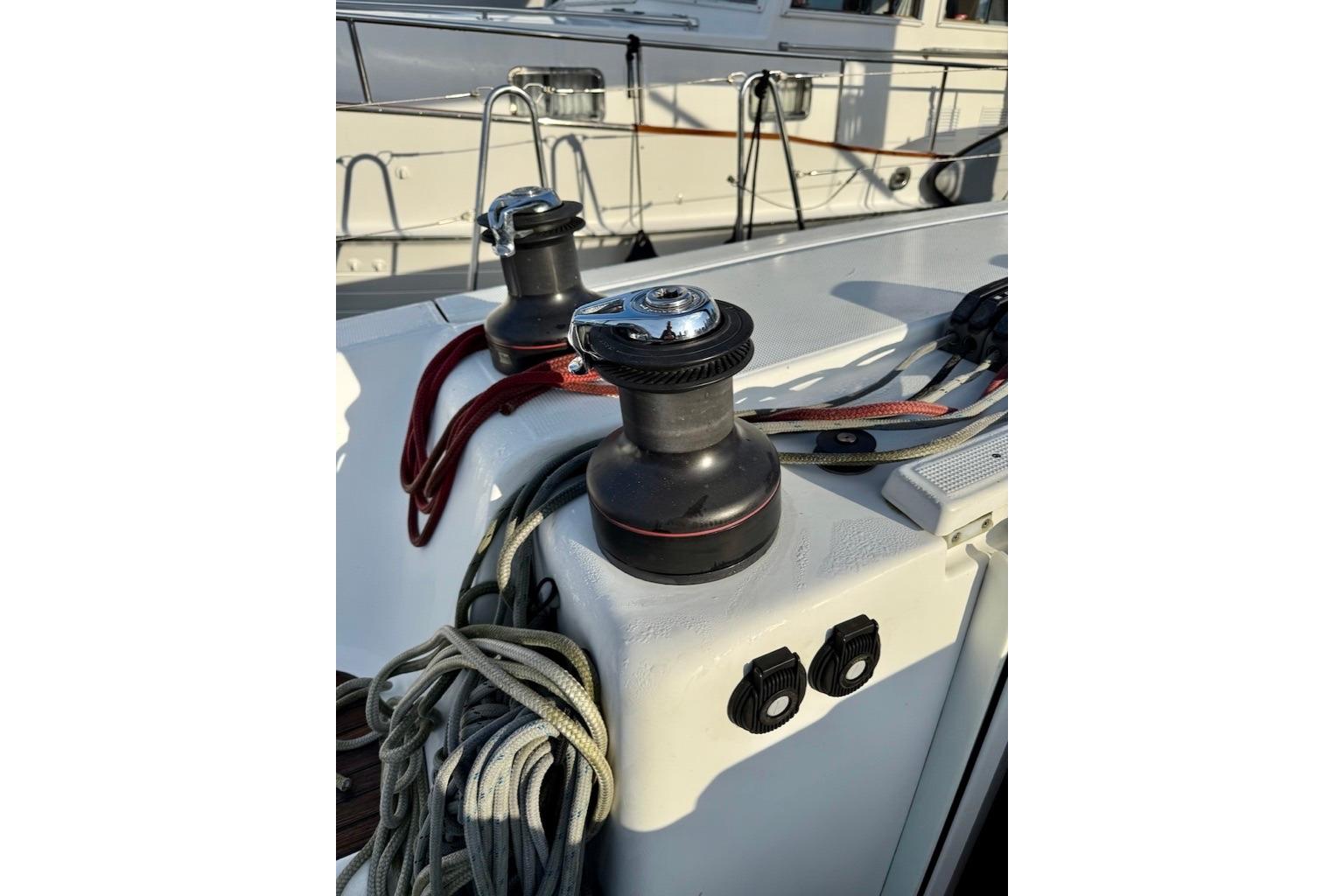

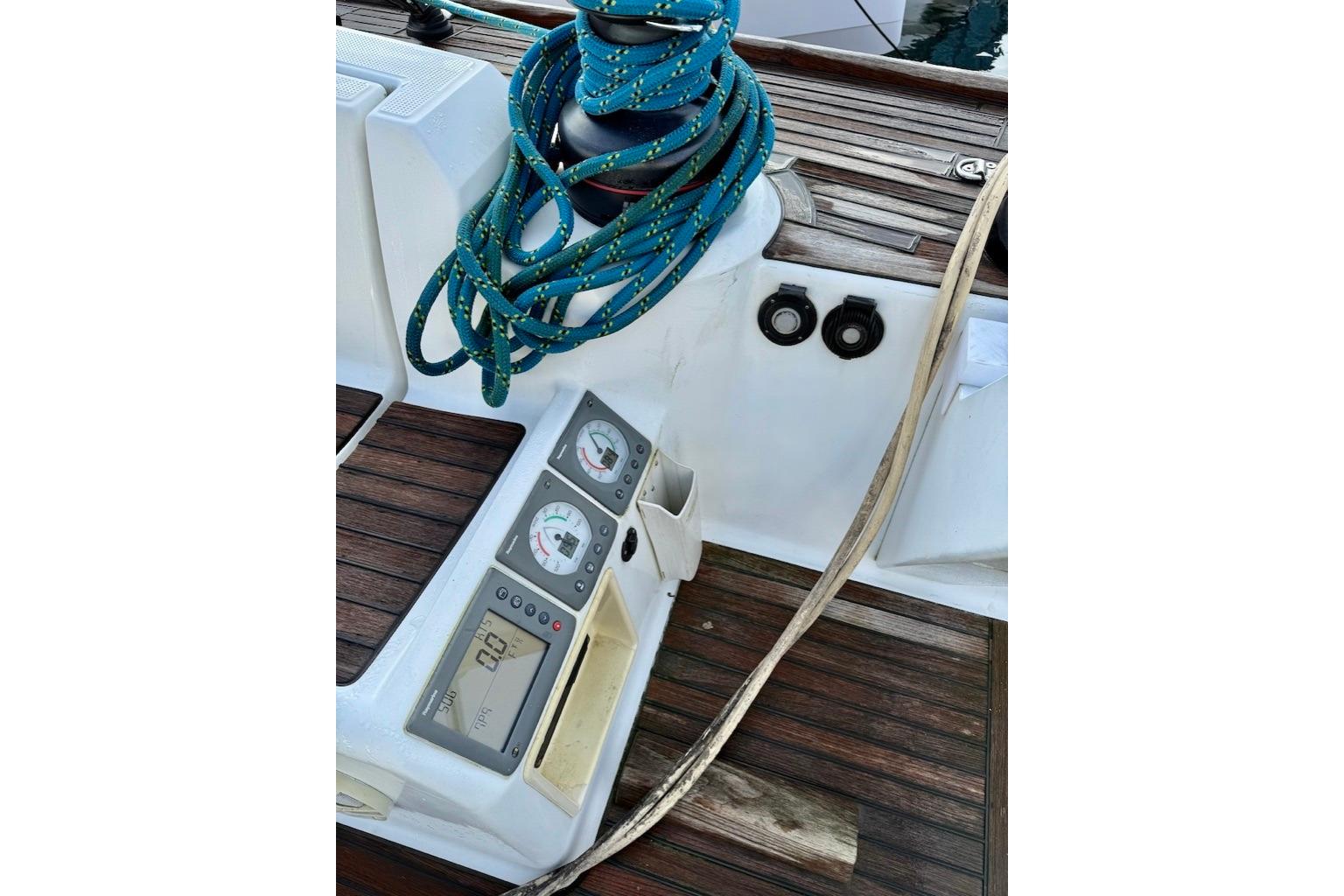

Harken aluminum self-tailing winches: (1) mainsail winch size 53.2 STA, (2) winches size 48.2 STA on coachroof, (2) genoa sheet winches size 60.2 STA
Installed spinnaker fittings installed on deck: (2) Eyes for spinnaker sheet, (2) eyes for spinnaker guy, (2) Eyes for pole downhaul

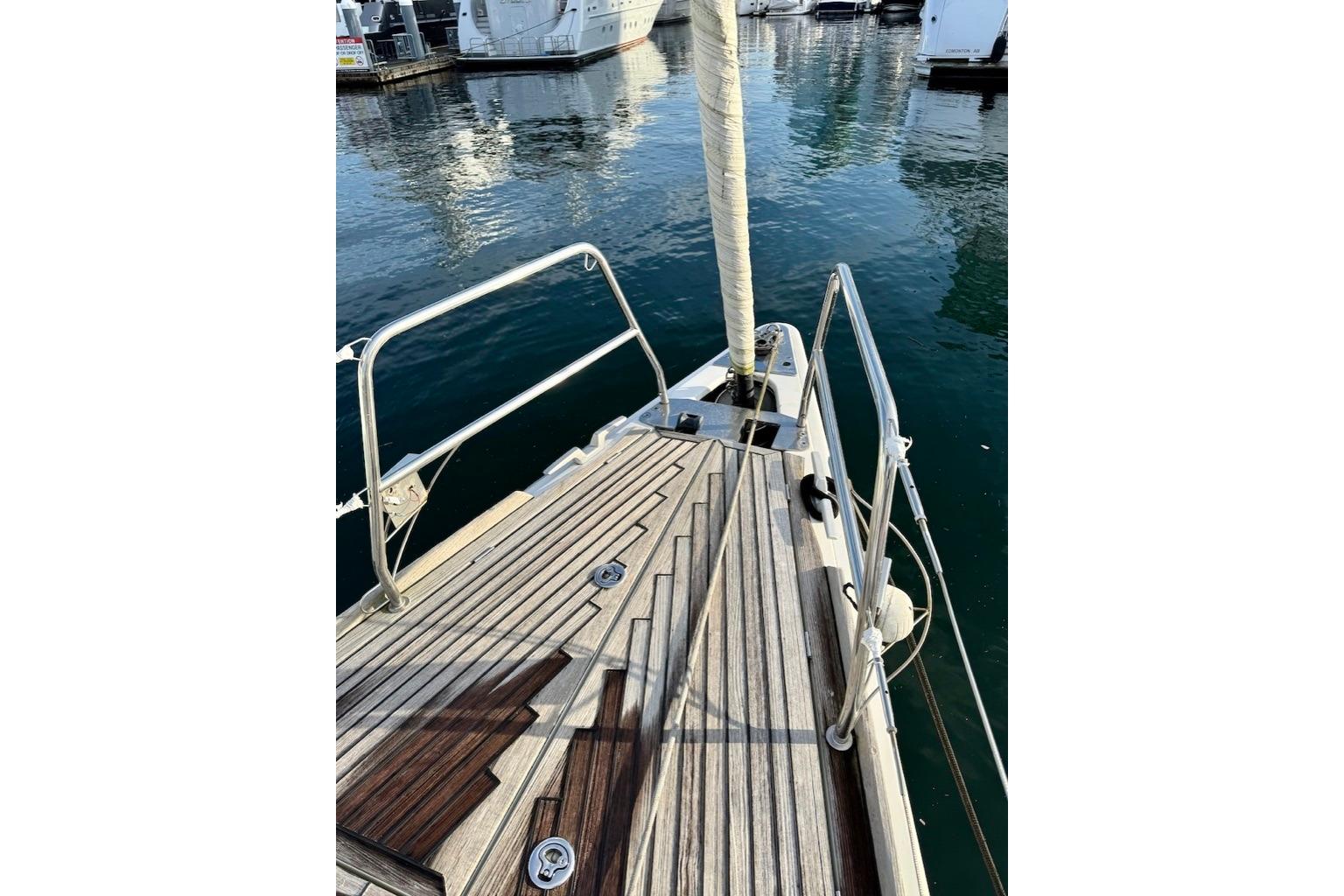

Stainless steel bow fitting w/tack position for spinnaker Tilting bow roller
Anchor: 24 kg Delta anchor, 150' Chain & 150' Rope
(2) Opening locking hatches providing access to: Self-draining anchor well w/eyebolt for bitter end 1500 Watt vertical electric winch w/circuit breake & remote control
Stowage locker for the tilting bow roller fitting
Sail locker w/overhead light
(6) 14" aluminum mooring cleats
(2) Stainless steel pulpits w/bow light bracket
(2) Stainless steel pushpit sections linked by two safety lifelines w/snap shackle openings
Pushpit fitted w/supports for ensign staff, lifebuoy holder & stern light
Double row of lifelines with turnbuckles and supported by 4 double & 8 single stanchions fixed on wide stainless steel bases
Lifeline gates to port and starboard
Teak toe-rails surrounding deck
Two composite hand rails built in to deck

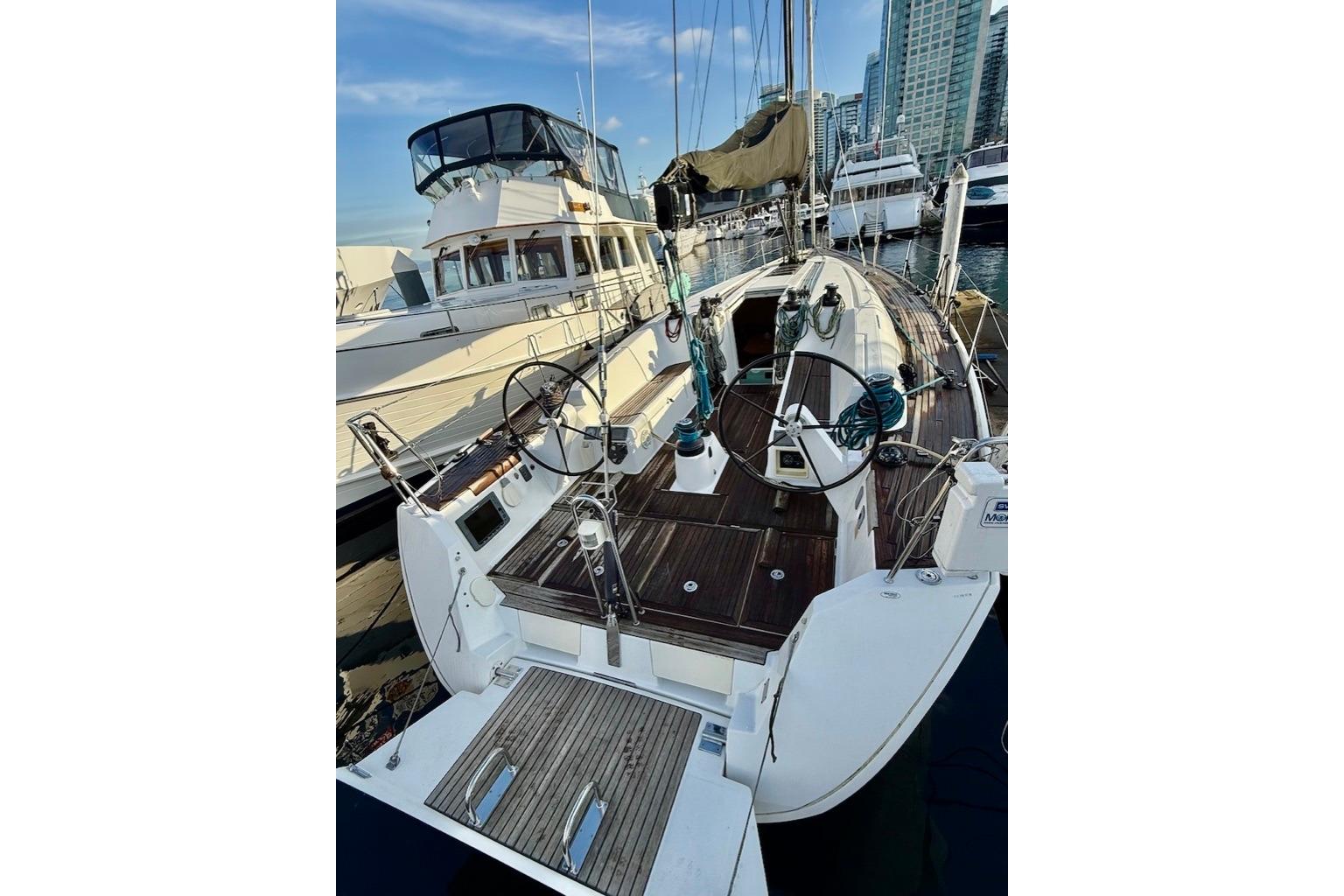

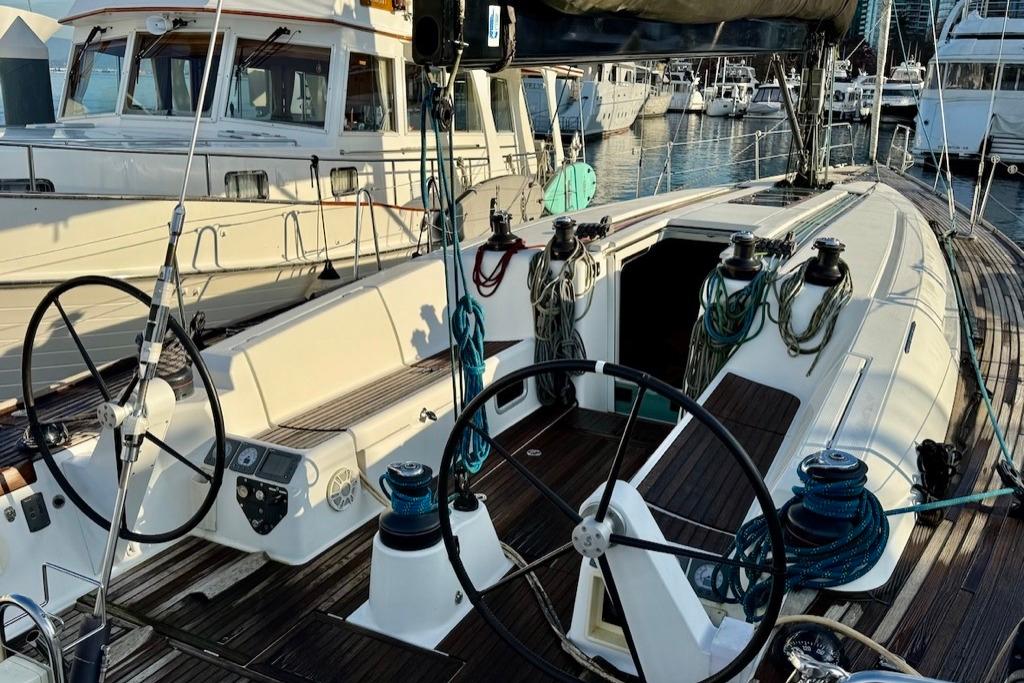

Cockpit is fitted with (7) stowage lockers
Teak slatted cockpit benches, sole & helmsman's seats Self-draining cockpit
(2) Waterproof speakers
(2) Lacquered aluminum, steering wheels
(2) Steering compasses

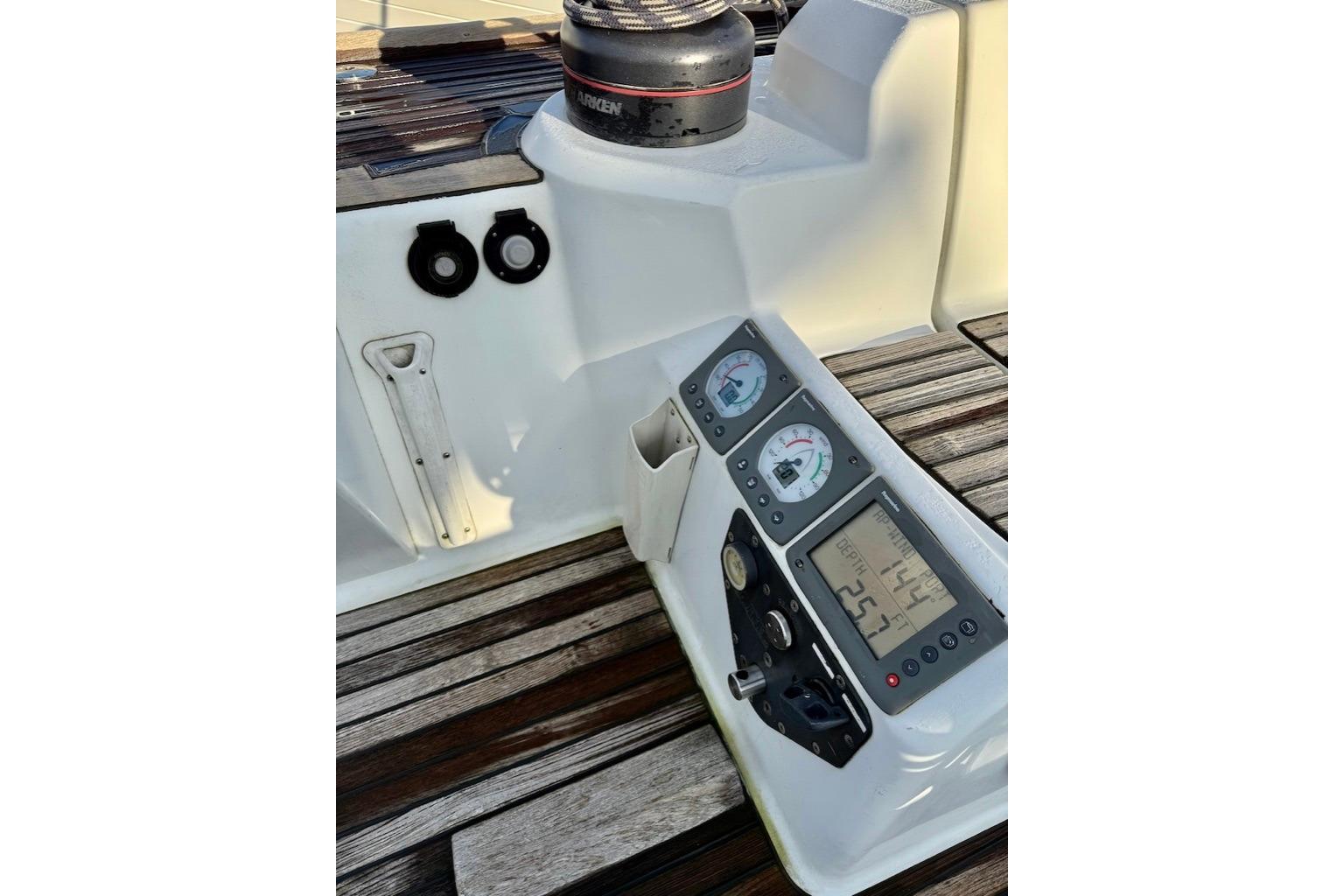

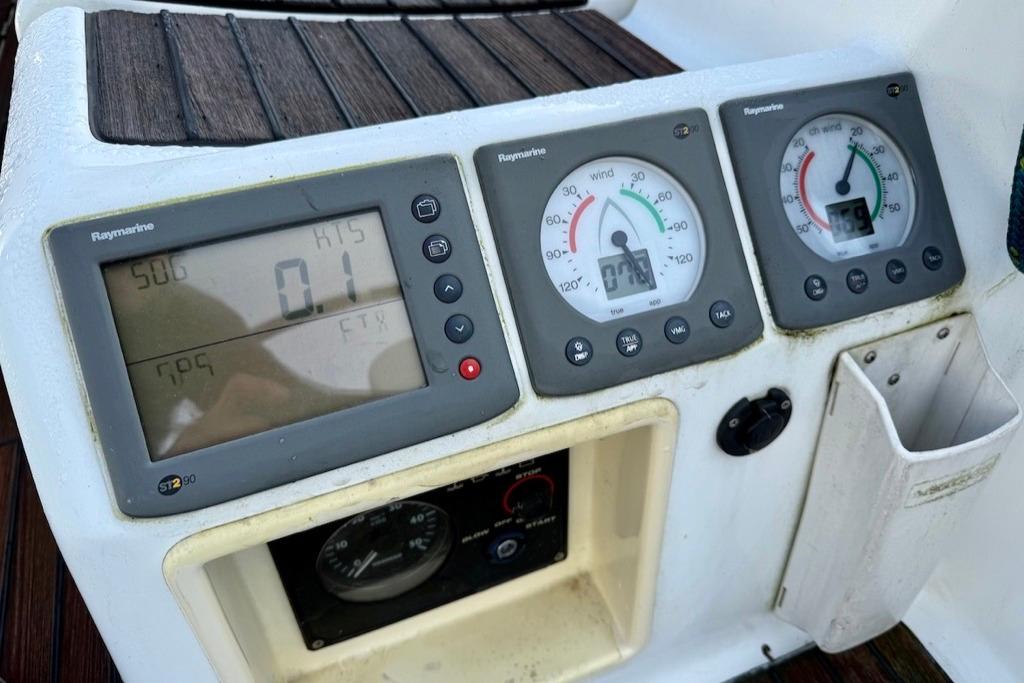

Engine control panel at end of cockpit bench
(2) Articulated eyes for attaching harness snap shackles. Aft deck w/built-in teak-slatted folding transom w/opening by manual tackle & gas strut. Stainless steel bathing ladder fixed to the transom. Hot & cold shower on port side
The underhung composite rudder is fiberglass/ polyurethane foam construction
Monolithic rudder stock made from bi-axial and unidirectional cloth using injection techniques
Rudder stock turns on Jefa self-aligning swivel bearings
Twin helm position w/35" dia. steering wheels
Emergency tiller

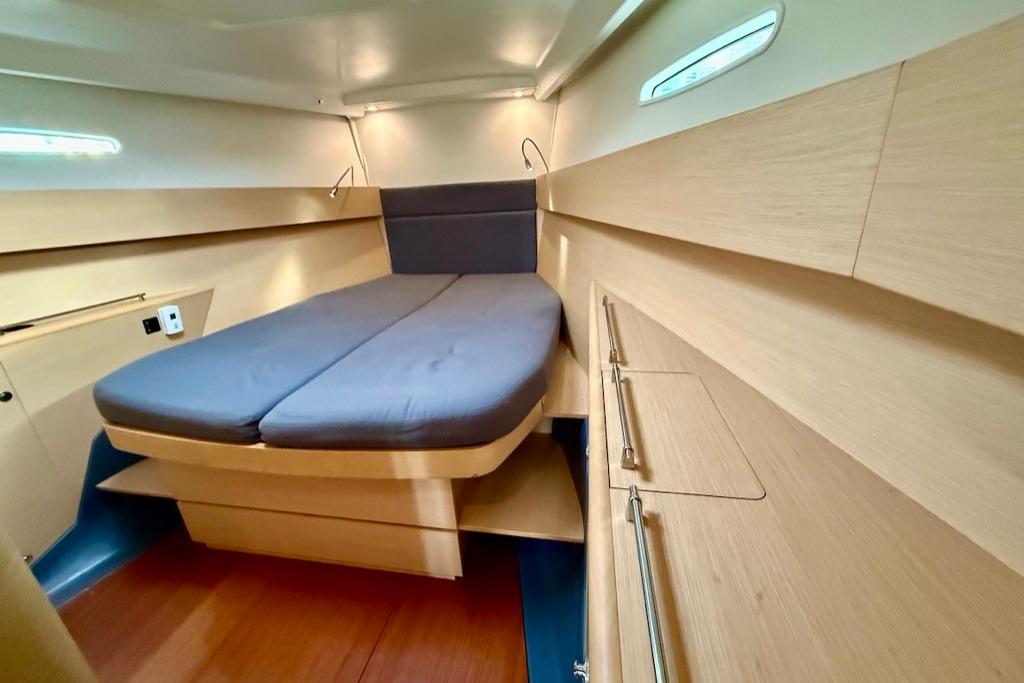

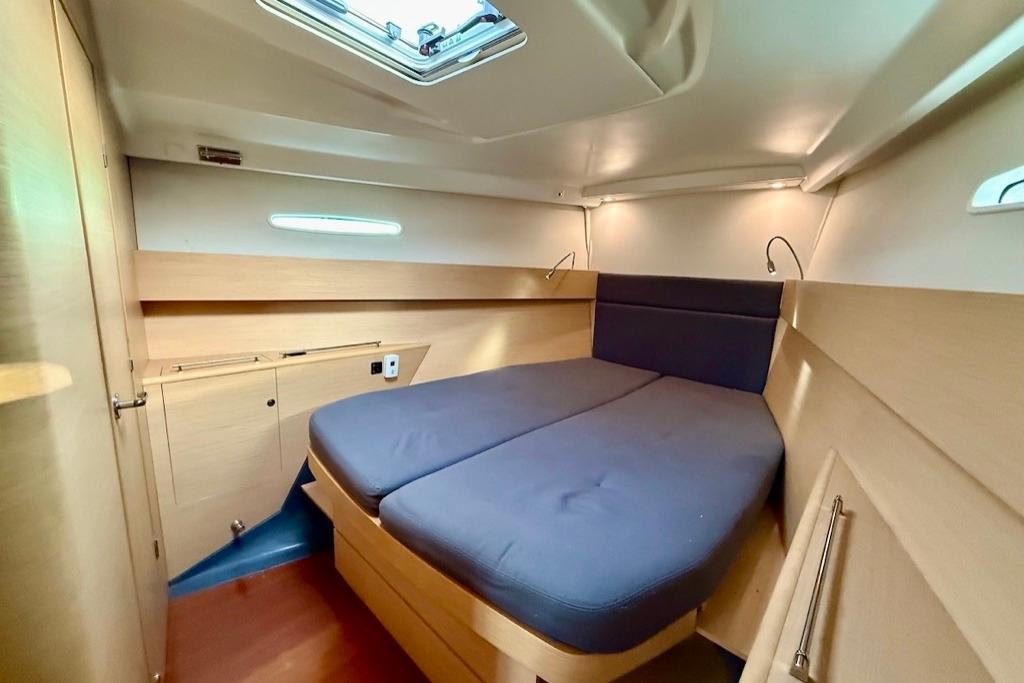

FORECABIN
6'3" headroom

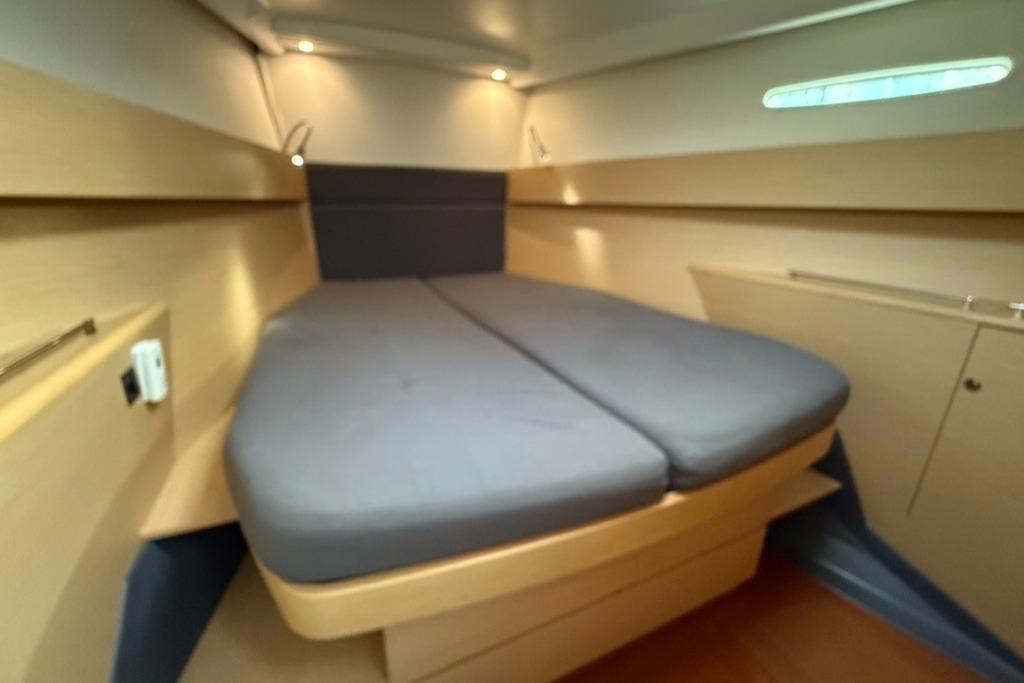

Double Island berth (6'7" x 4'11") on slatted base w/high-density foam mattress w/removable cover. Padded headboard (2) Large drawers under berth (1) hanging locker & (1) stowage locker. Dressing table to starboard (2) open shelves along hull (1) deck hatch w/ screen (4) articulated reading lights & (3) halogen overhead lights and indirect overhead lighting

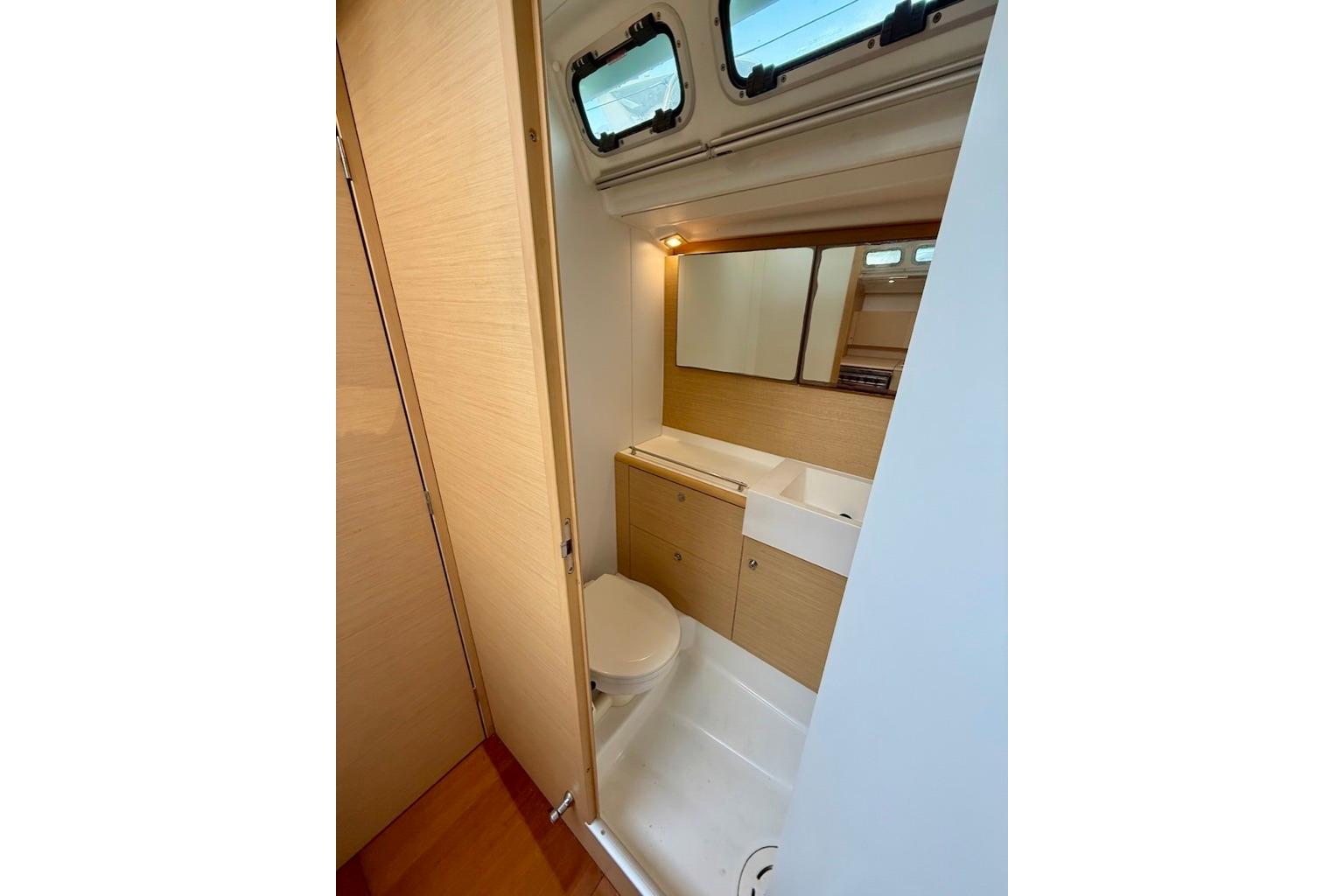

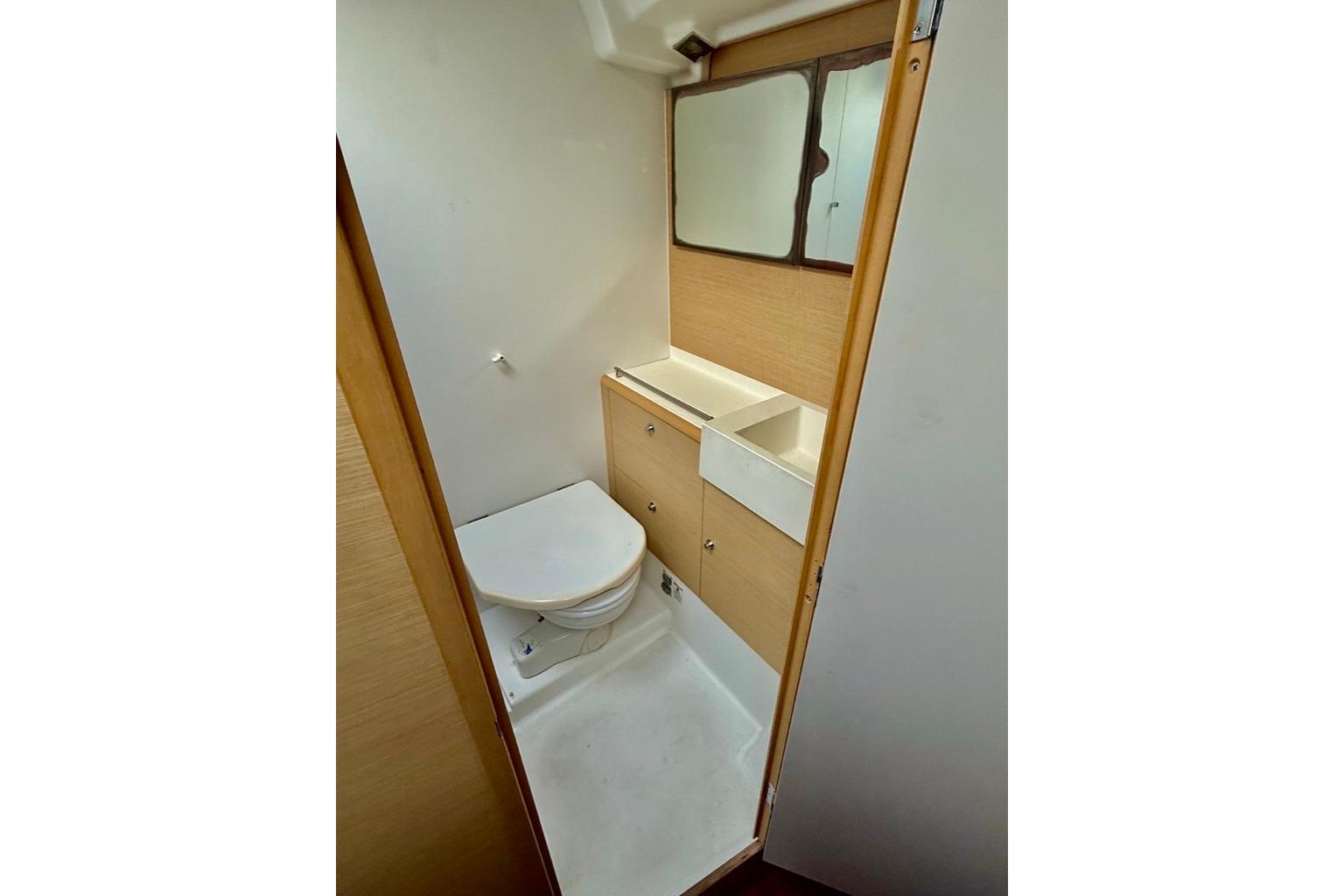

FORWARD HEAD
Large bowl manual marine toilet w/lid
Rigid holding tank (21 gal )
Work surface w/square synthetic resin sink, mixer tap. Locker w/ built-in drawer & wooden door Mirror w/stowage cupboard
Separate shower
(1) Opening deck hatch w/blind(3) Square halogen overhead lights

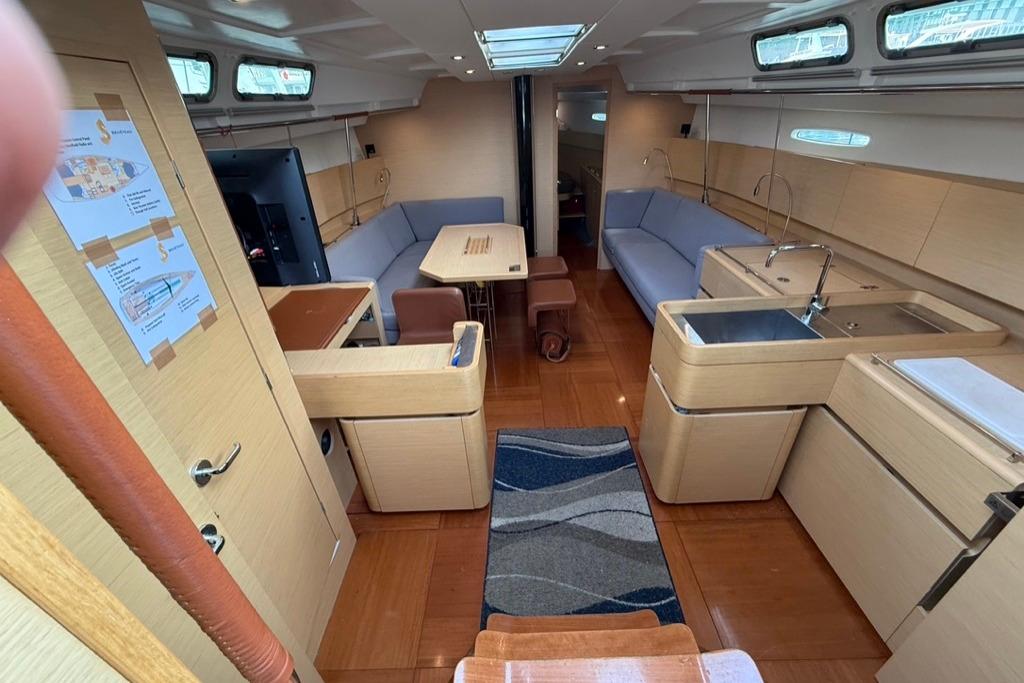

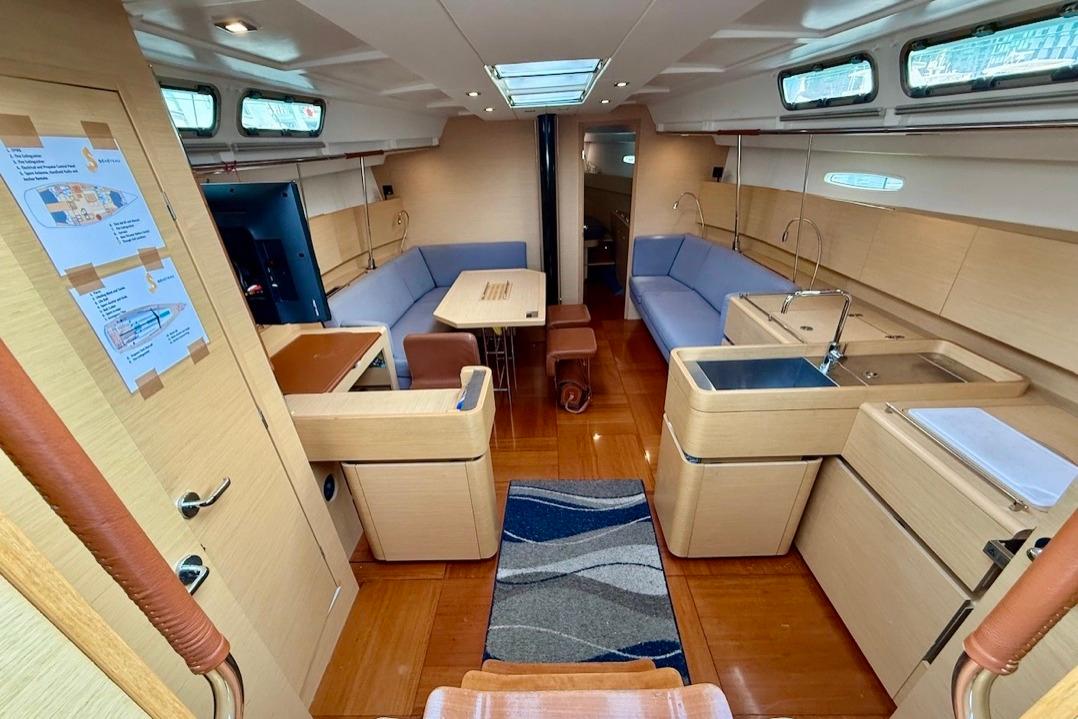

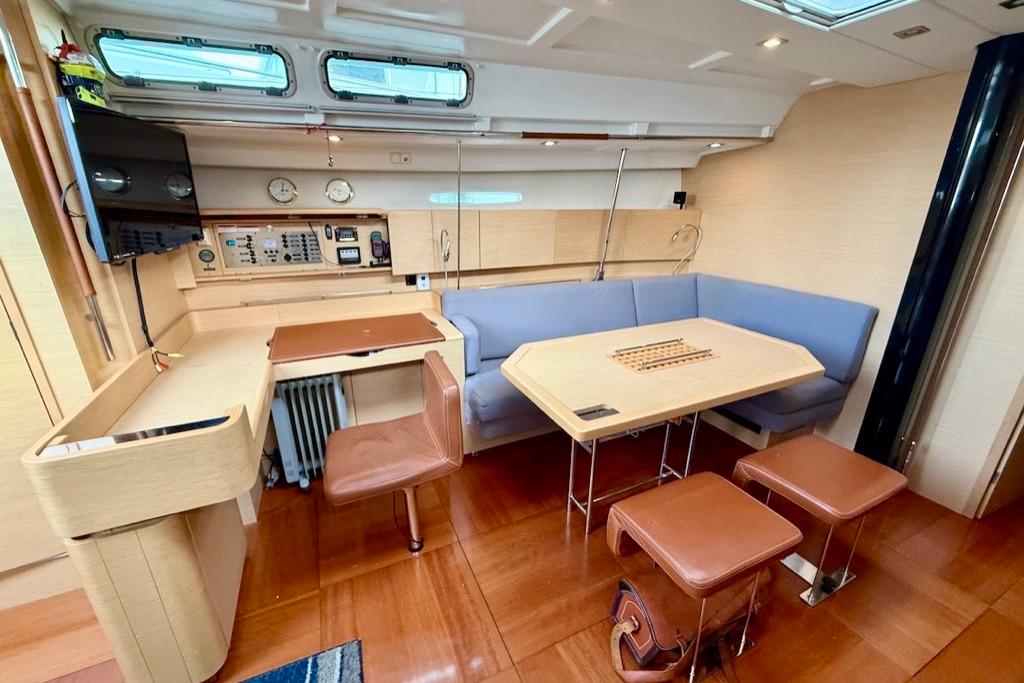

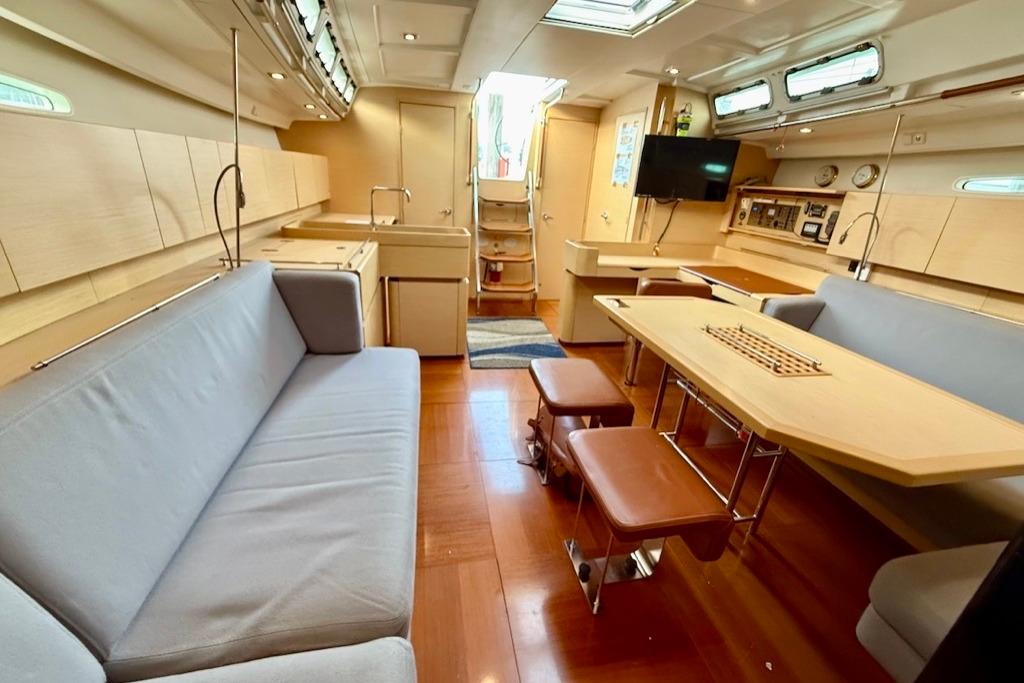

SALON
L-shaped salon with bench seat & table on SS legs w/solid wood frame, handgrips & stowage (2) Removable seats on stainless steel legs (4) Upper units along port hull w/closed stowage. Starboard seating area w/sofa (4) Upper units along starboard hull w/closed stowage. Stowage lockers under bench seat & under sole. Stainless steel fiddle along hull aft of bench seat (3) Opening deck hatches w/blinds / screens (1) Hull port to starboard & (1) to port Passive ventilation system (4) Articulated reading lights & (4) halogen overhead lights Indirect lighting

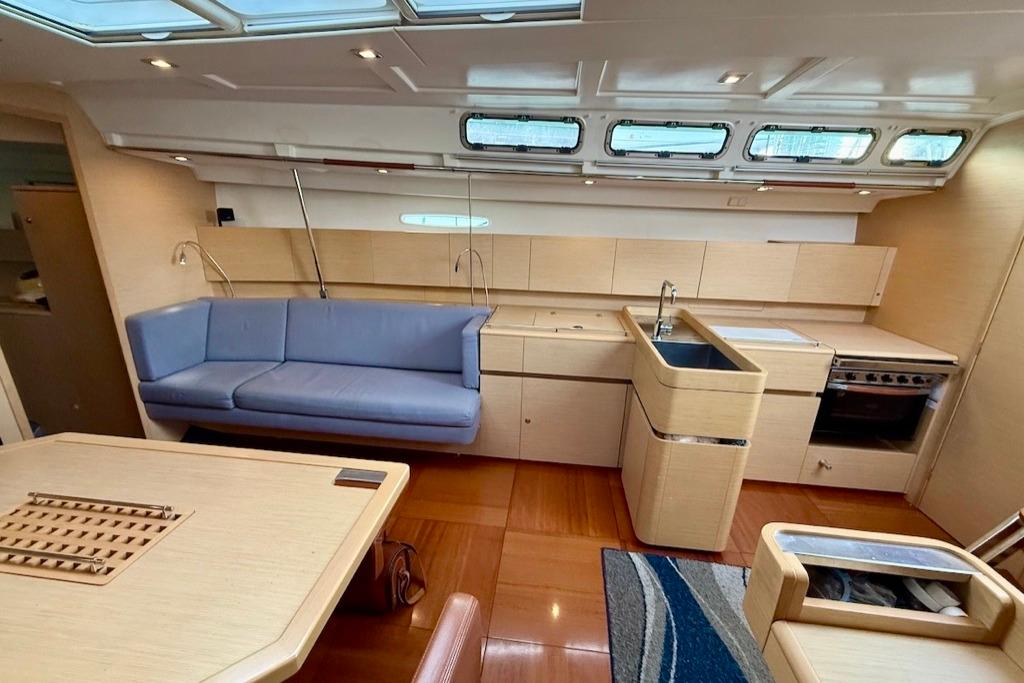

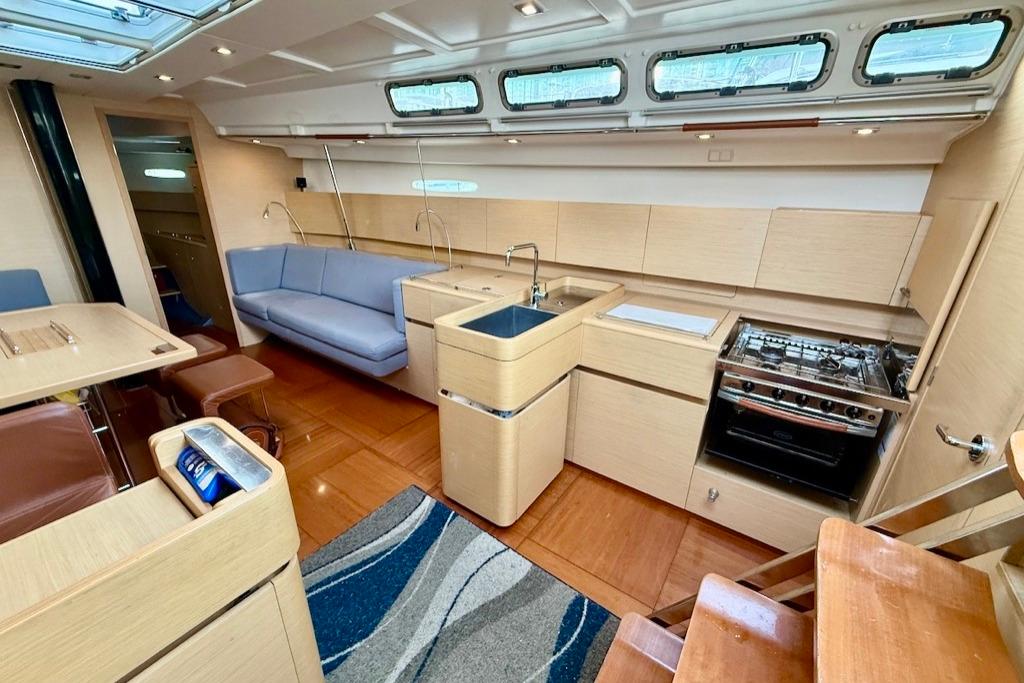

GALLEY
T-shaped galley layout. Wood work surface with SS fiddles. Gimballed 2-burner stove with oven. Wooden drop leaf used as work surface. Storage w/(1) closed shelf under oven, (1) stowage unit,(1) cutlery drawer, (1) plate storage. Stainless steel island central unit w/stainless steel sink and mixer tap. Waste bin with access to valves & stowage. 26 gal front opening refrigerator, 16 gal top opening freezer.Bottle storage drawer(4) shelves (incl. 2 w/spice racks & 1 deep)(1) stowage unit for cooking utensils (4) opening ports (2) square halogen overhead lights with indirect lighting

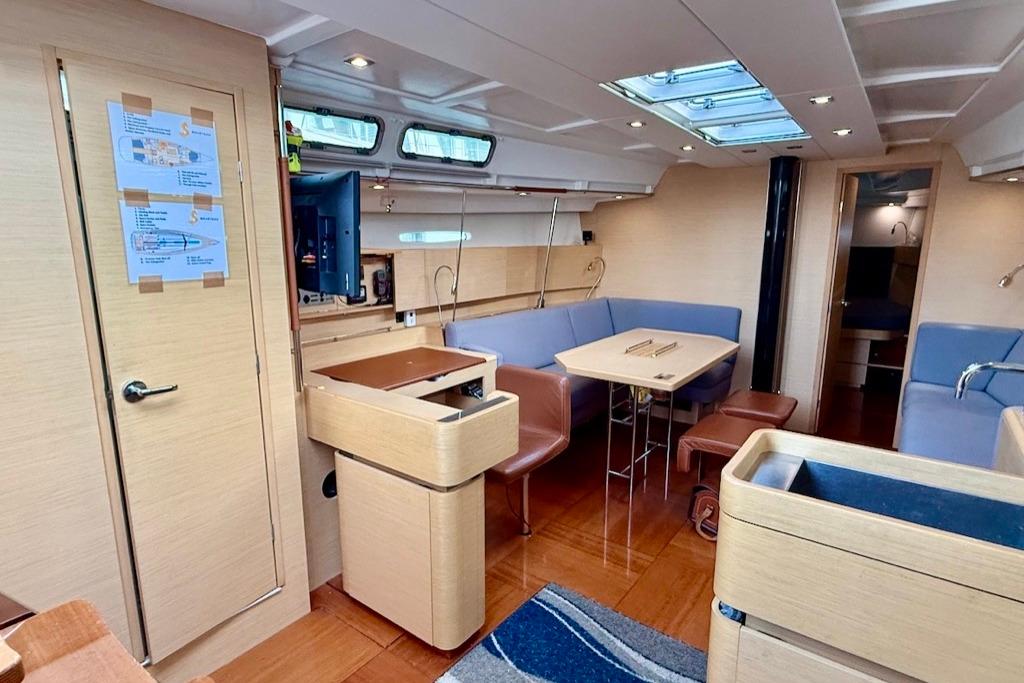

CHART TABLE TO PORT
Large dimension (4'7" x 4'7") chart table/desk. Space for stowing charts under shelves. Stowage unit with holders located under chart table. Closed unit under angle of desk. Aft-facing return serves as desk with unit under return w/shelf & access to battery switches. Swivel directional seat (2) opening ports on coaming w/blinds & handrail (1) white & red light & (1) halogen overhead light and indirect lighting

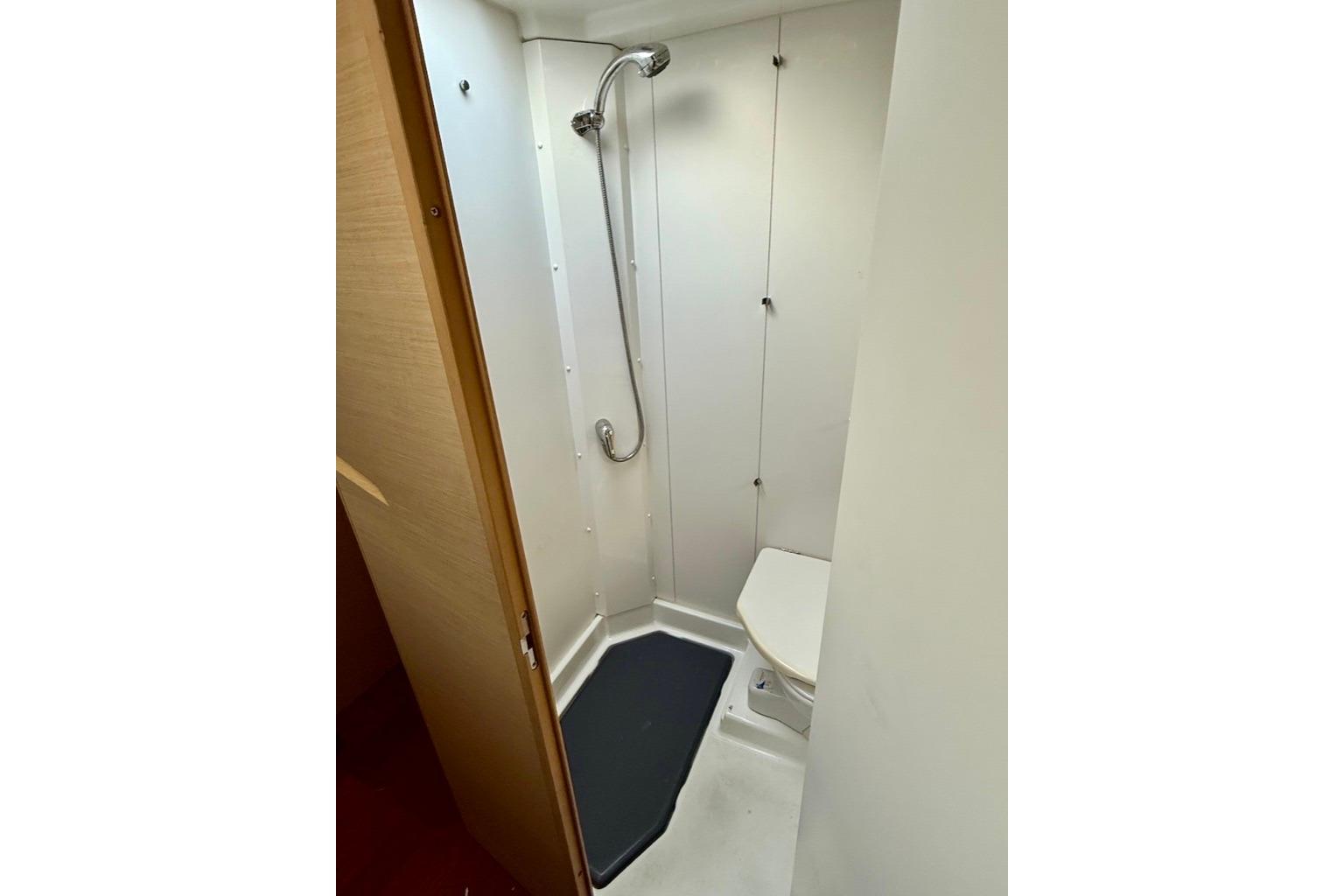

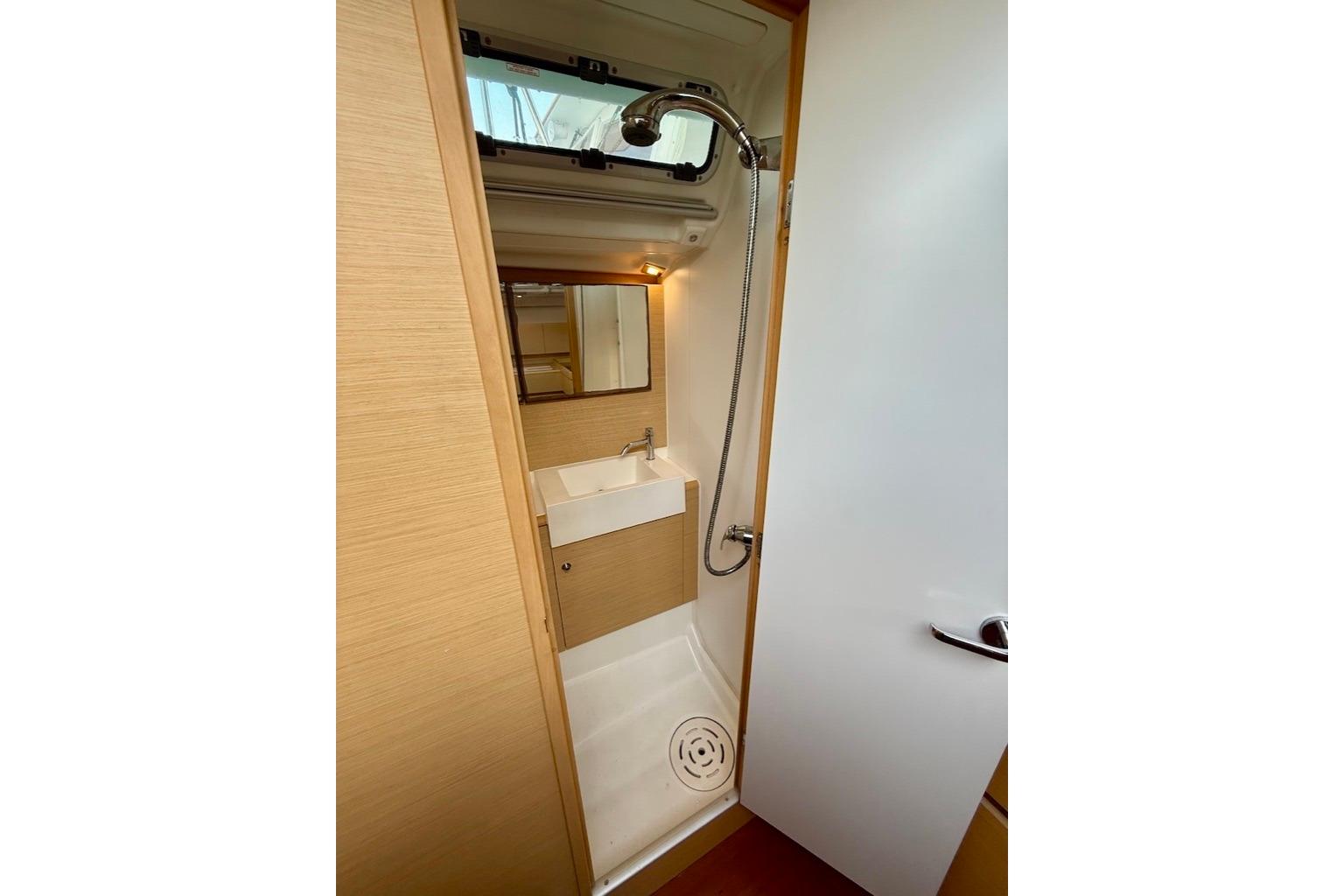

AFT HEAD TO PORT

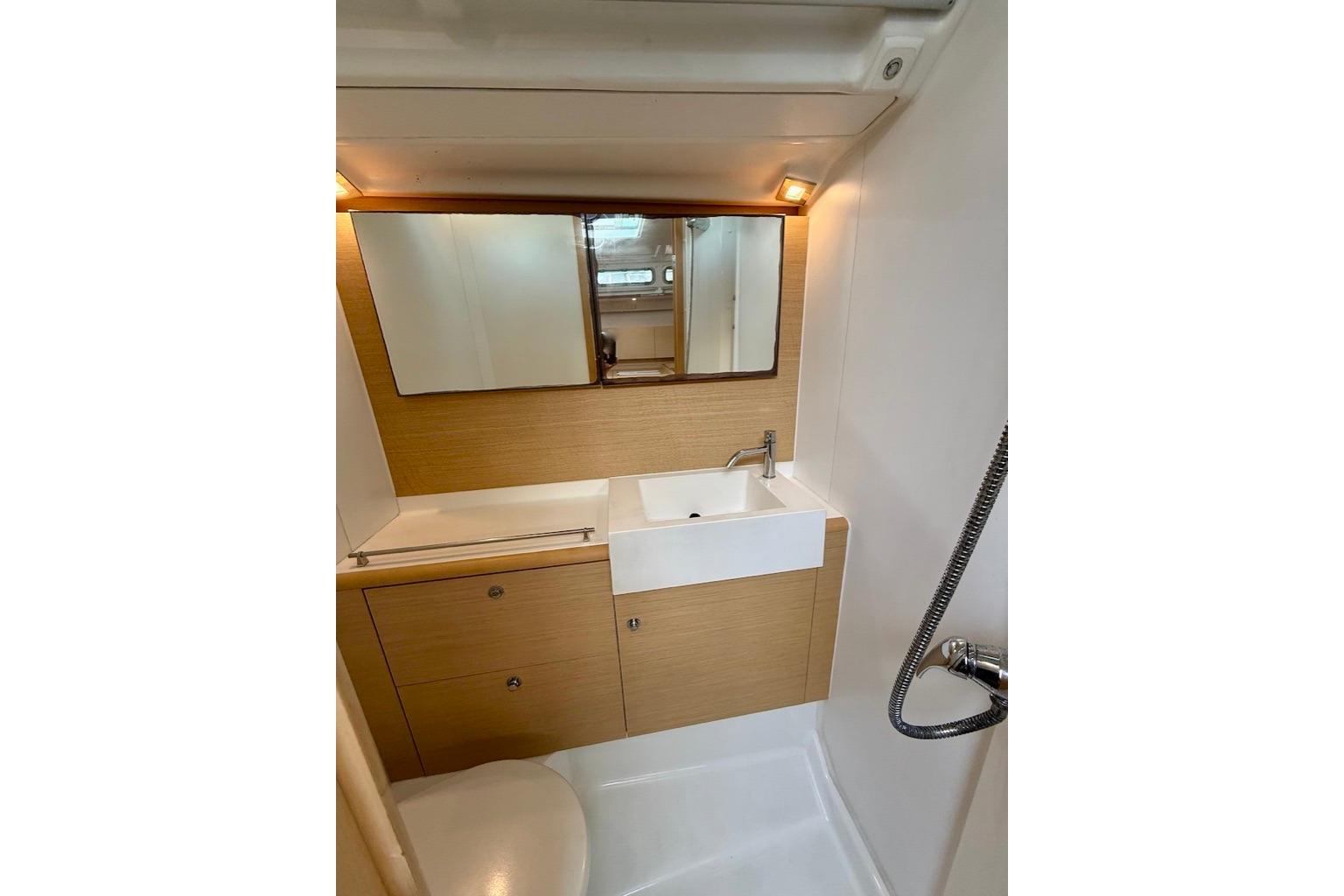

Counter top w/synthetic resin sink, mixer tap & stainless steel fiddle. Locker with built-in drawer & wooden door Mirror above sink opens onto stowage cupboard. GRP shower stall & shower head w/mixer tap. (2) opening ports w/blinds on coaming and (2) square halogen overhead lights

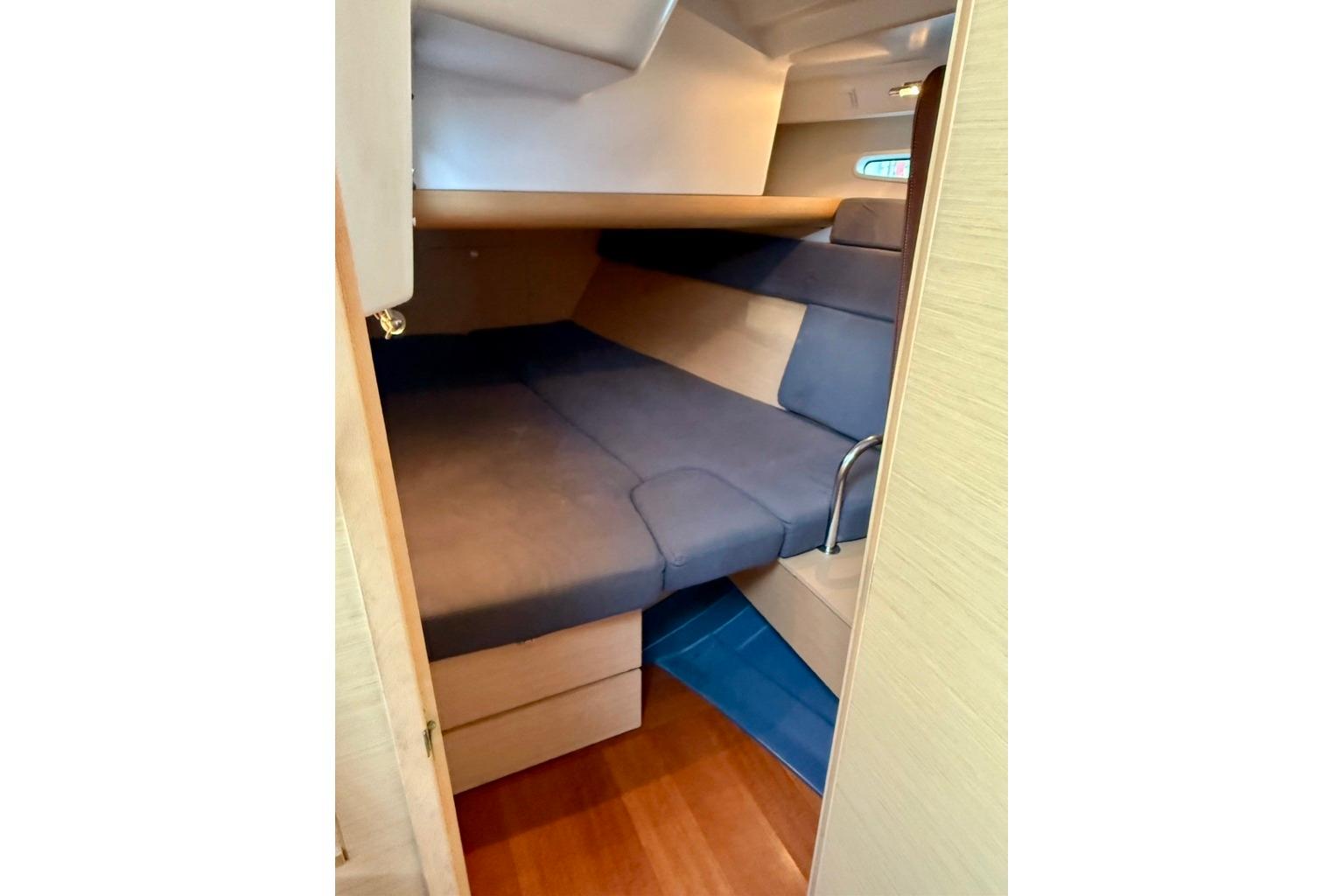

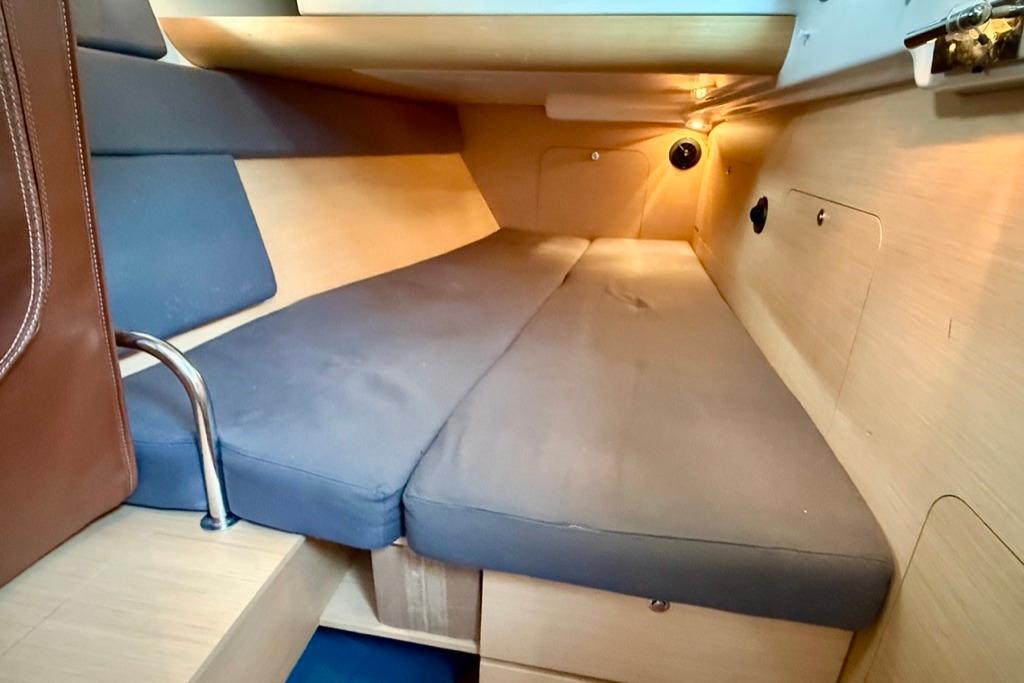

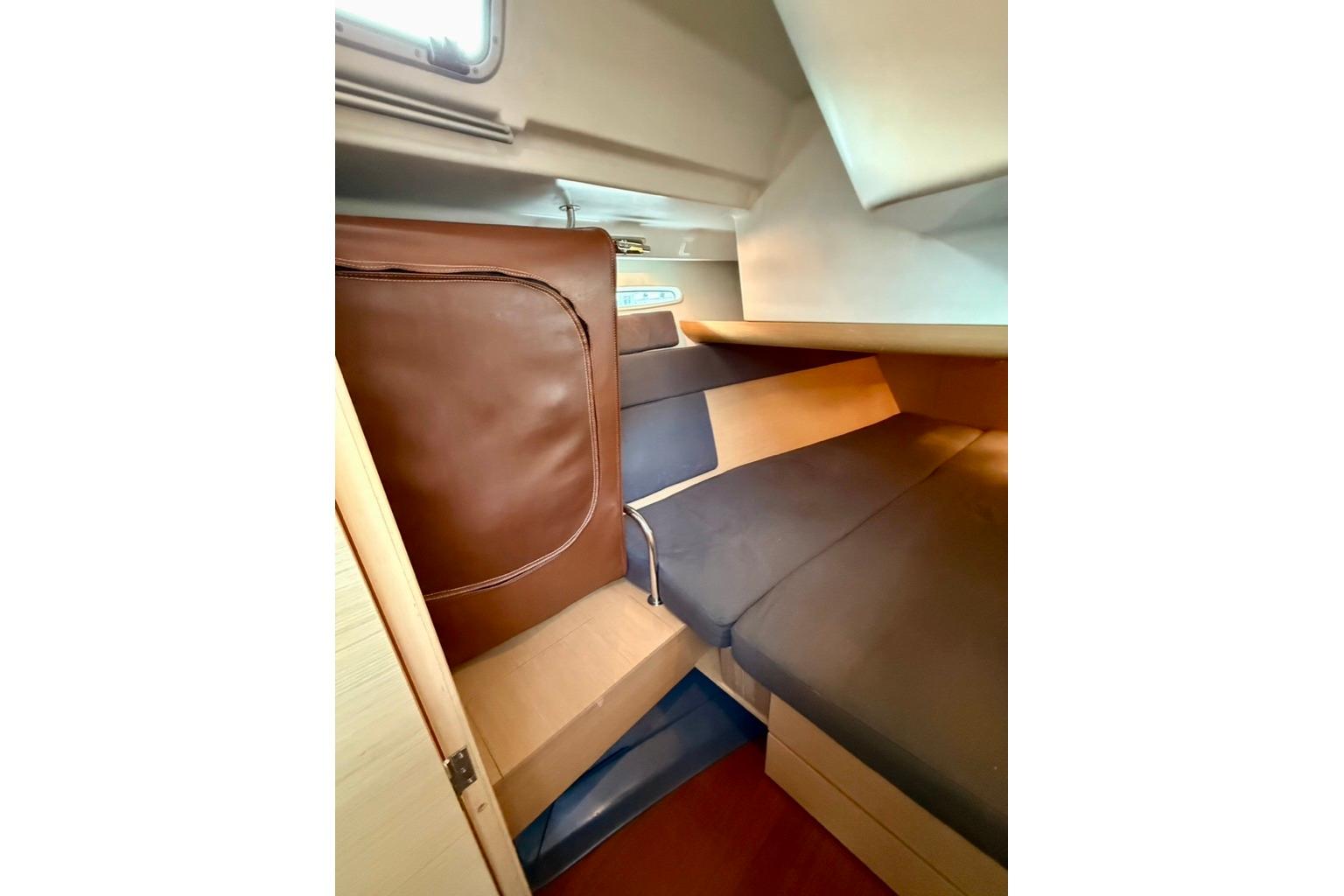

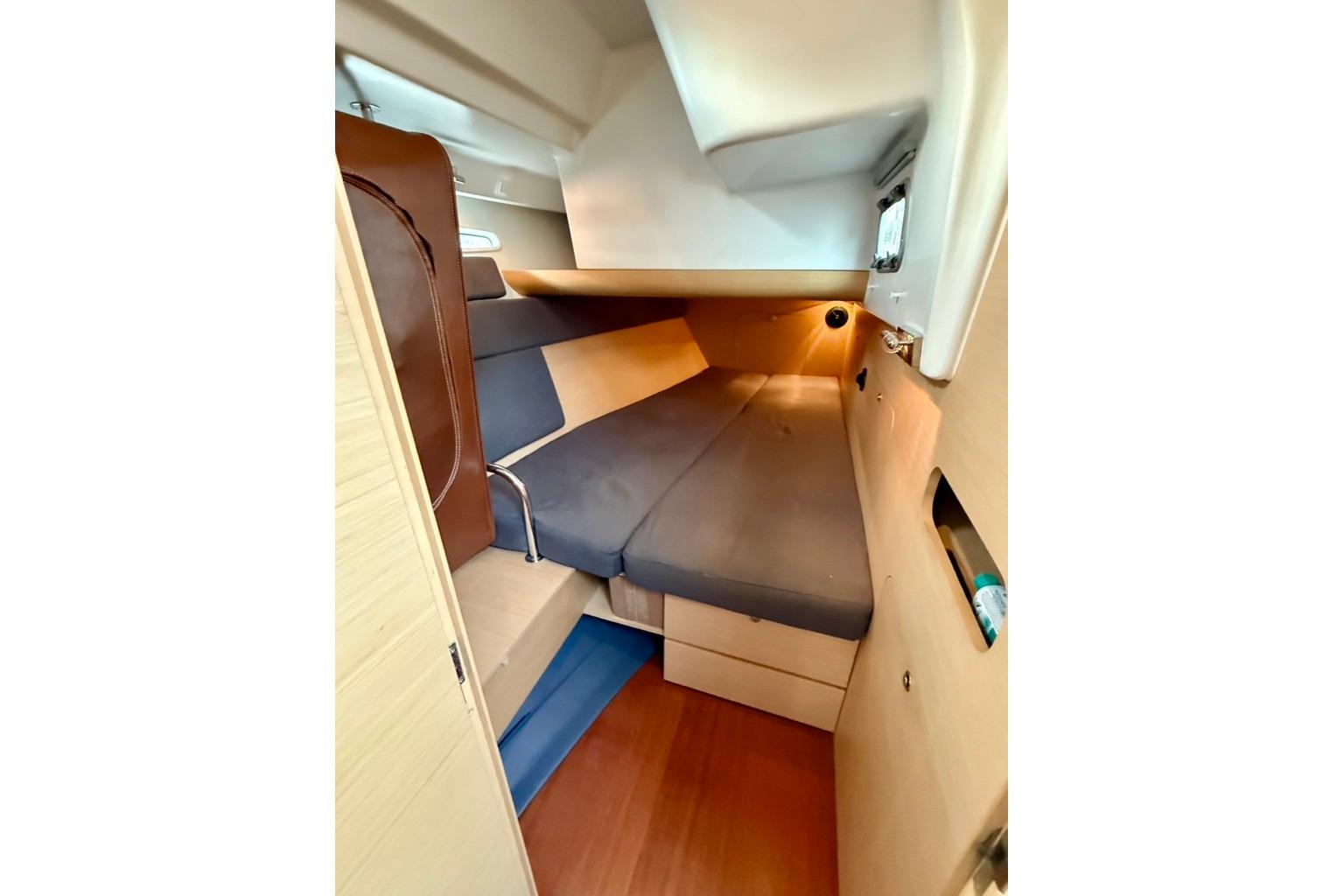

2 X AFT CABINS
6'6" headroom

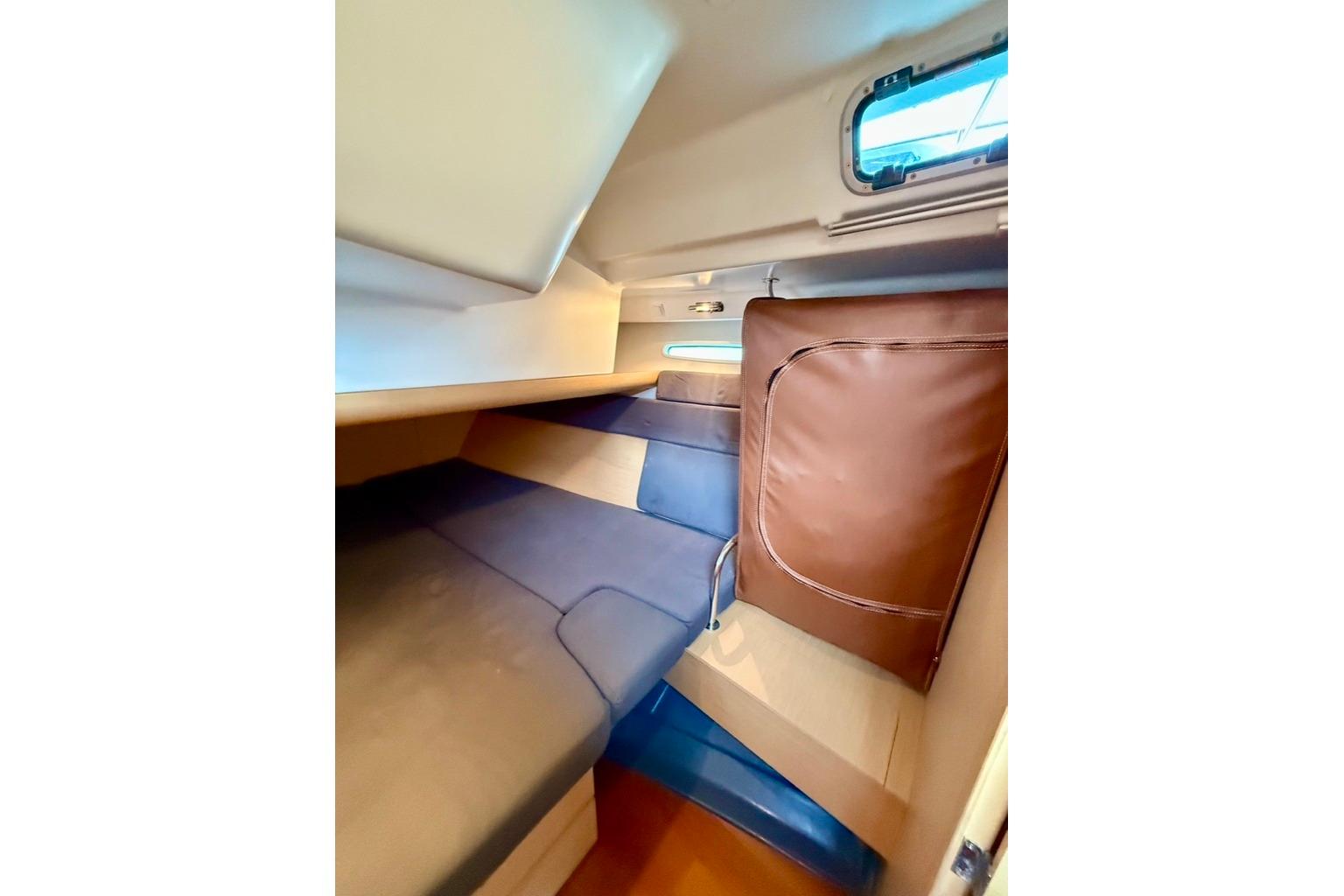

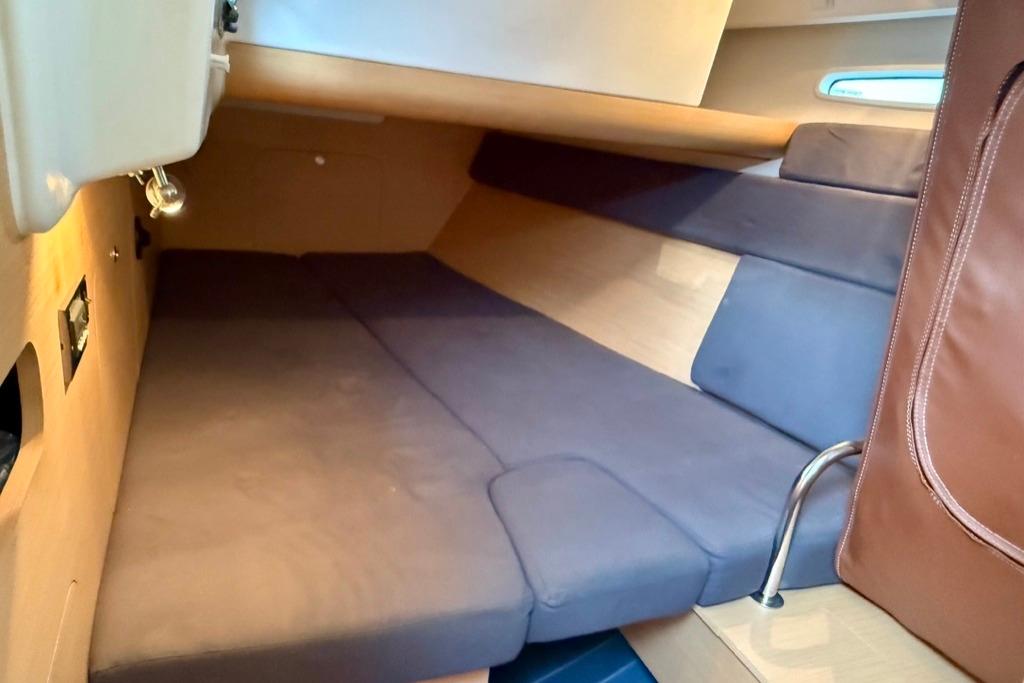

Double berth w/high-density foam mattress w/removable cover and storage beneath. Hanging lockers on stainless steel rails. Lounger back against hull w/armrest. Stowage on upper level. Storage holders & stowage along center bulkhead. Access hatch to engine compartment on port and starboard. (2) pening ports & (1) hull port (2) articulated reading lights & (1) halogen overhead light
2 X 75 gal fresh water tanks 11 gal Hot Water Tank Bronze sea-cocks
(2) Bilge pumps (1 manual, 1 electric)
(2) Electric pumps w/automatic start-up for drainage of shower compartments. 12VDC pressurized water supply.
12 Volt electric circuit supplied as standard by two 140 Amp service batteries
80 Amp alternator attached to the engine
110 Volt supply (shore supply situated in stowage
locker & protected by a circuit breaker)
(1) 40 Amp charger
(1) Battery power distributor
Backlit electrical panel in brushed stainless steel Each function is protected by a circuit breaker Panel comprises: (1) 12 Volt socket, (1) 110 Volt
voltmeter, (1) 12 Volt voltmeter, (1) ammeter,
(1) water & fuel gauge w/digital display
(1) Battery-low and fuel and water levels alarm signal (1) 110 Volt sockets
Navigation lights: Navigation & anchor lights on mast, port & starboard bow lights on pulpit, stern light on push-pit

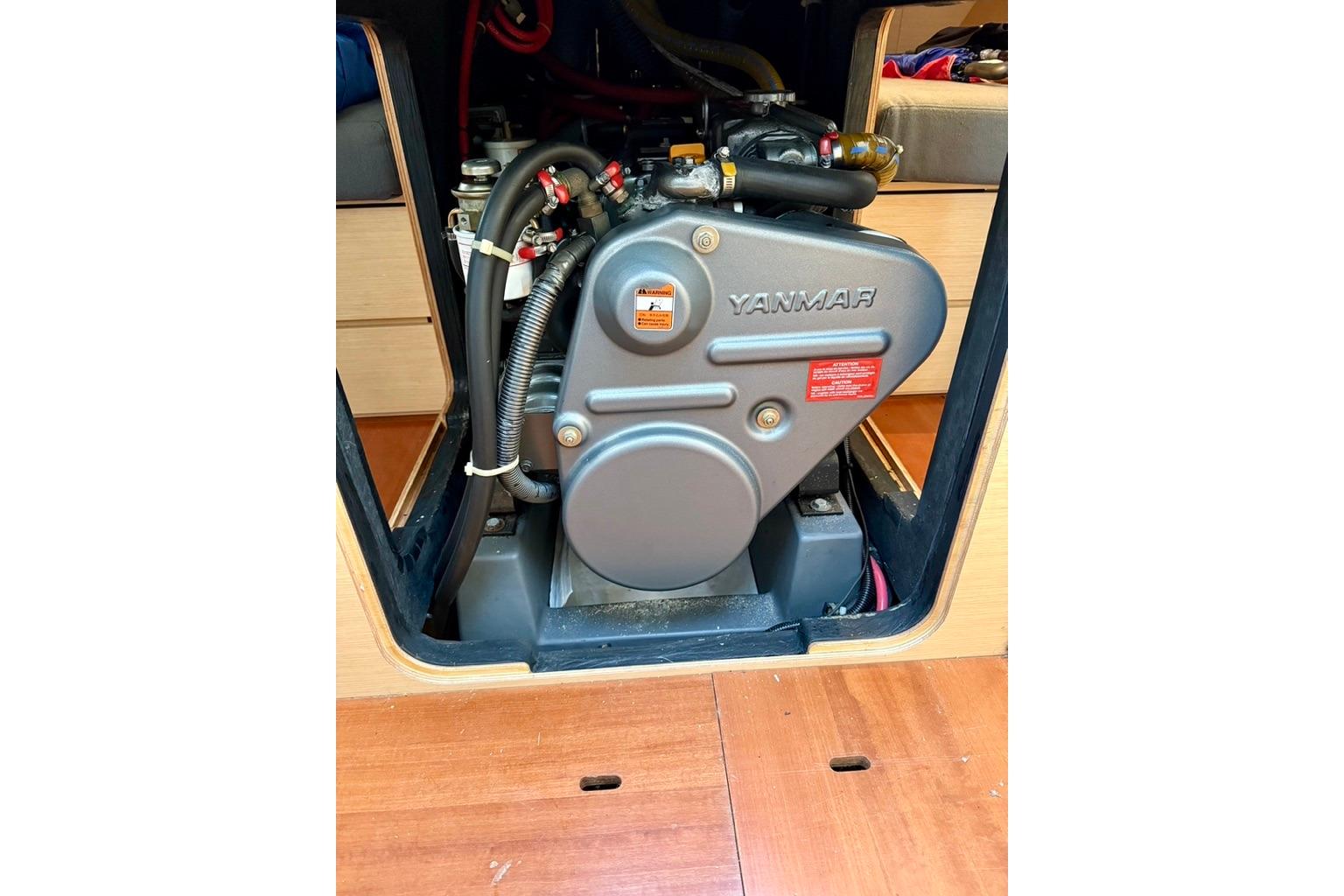

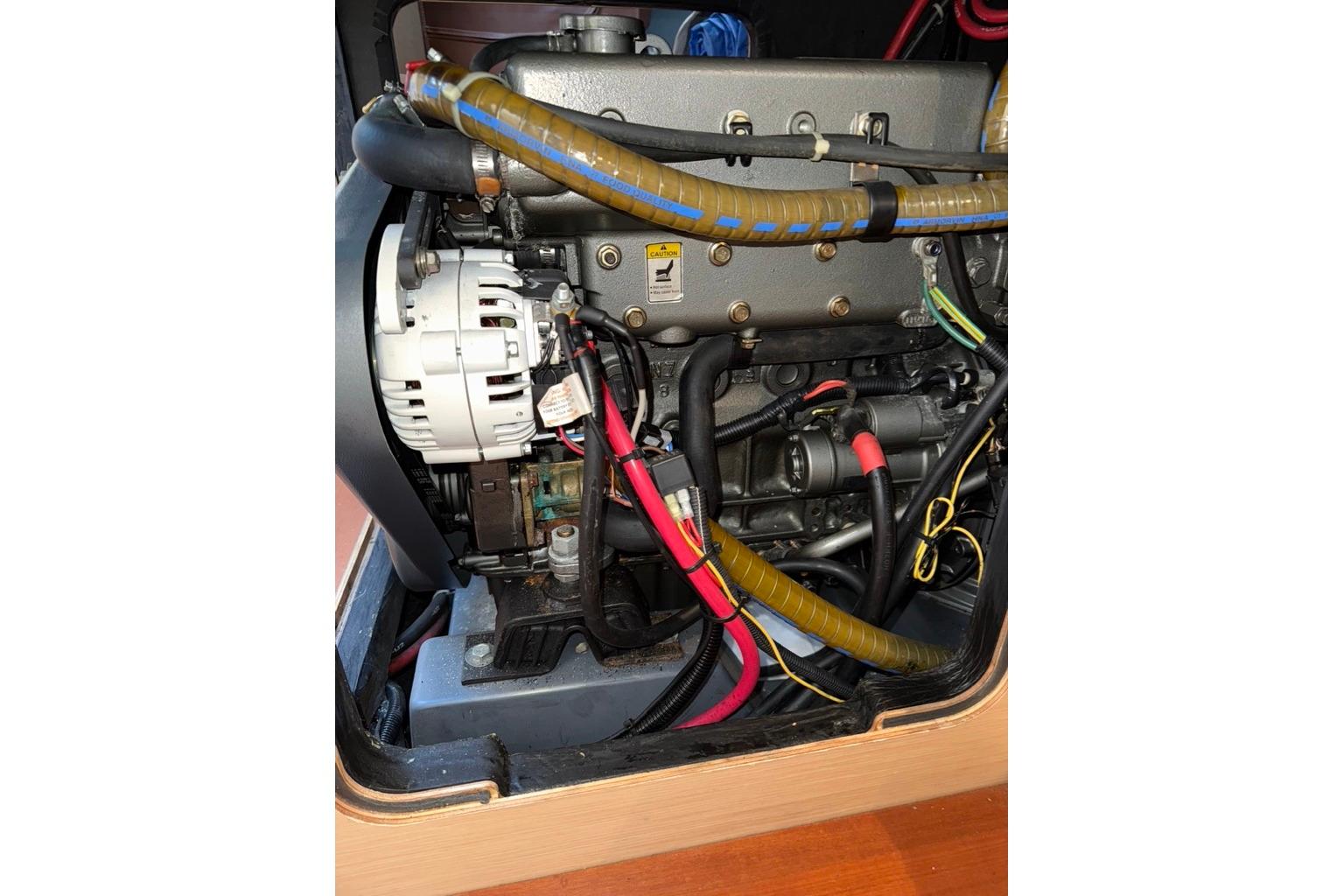

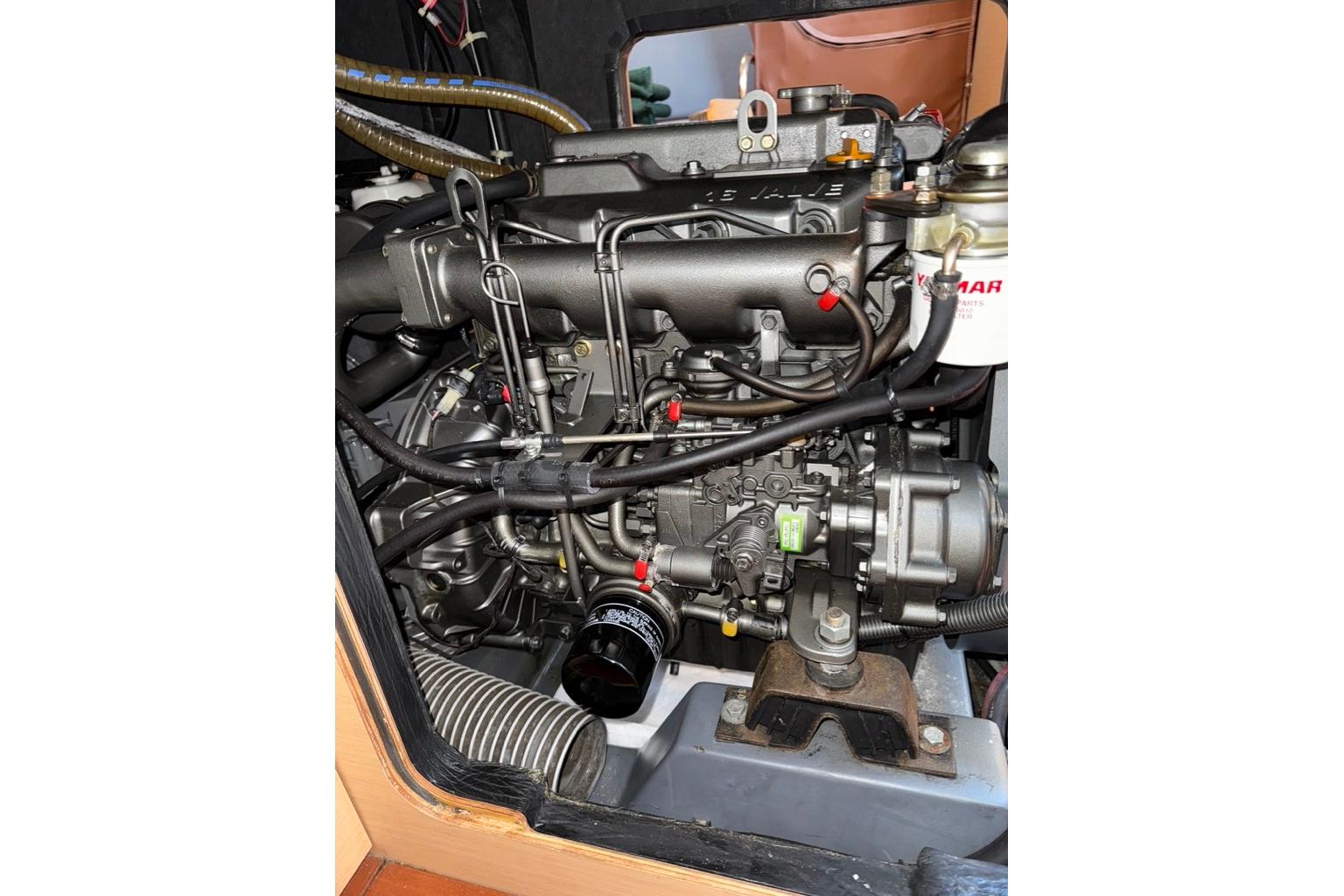

YANMAR – 75 hp – 55 kw diesel engine w/Sail Drive transmission
Engine compartment insulated w/soundproof foam. Access is through an opening aft of companionway & two side access hatches in aft cabins
Folding 3-blade propeller
Roto-moulded 63 gal diesel tank
Engine control panel in cockpit
1 X 12 VDC – 110 Amp engine starting battery
Neil Pryde Dacron Main
Neil Pryde Dacron Genoa 140
Quantum Main
Quantum Jib 100
Quantum Asymmetrical Spinaker
North Sails Genoa 140
North Sails Genoa 140
North Sails Code 0 3di
North Sails Asymmetrical Spinnaker
Storm Jib

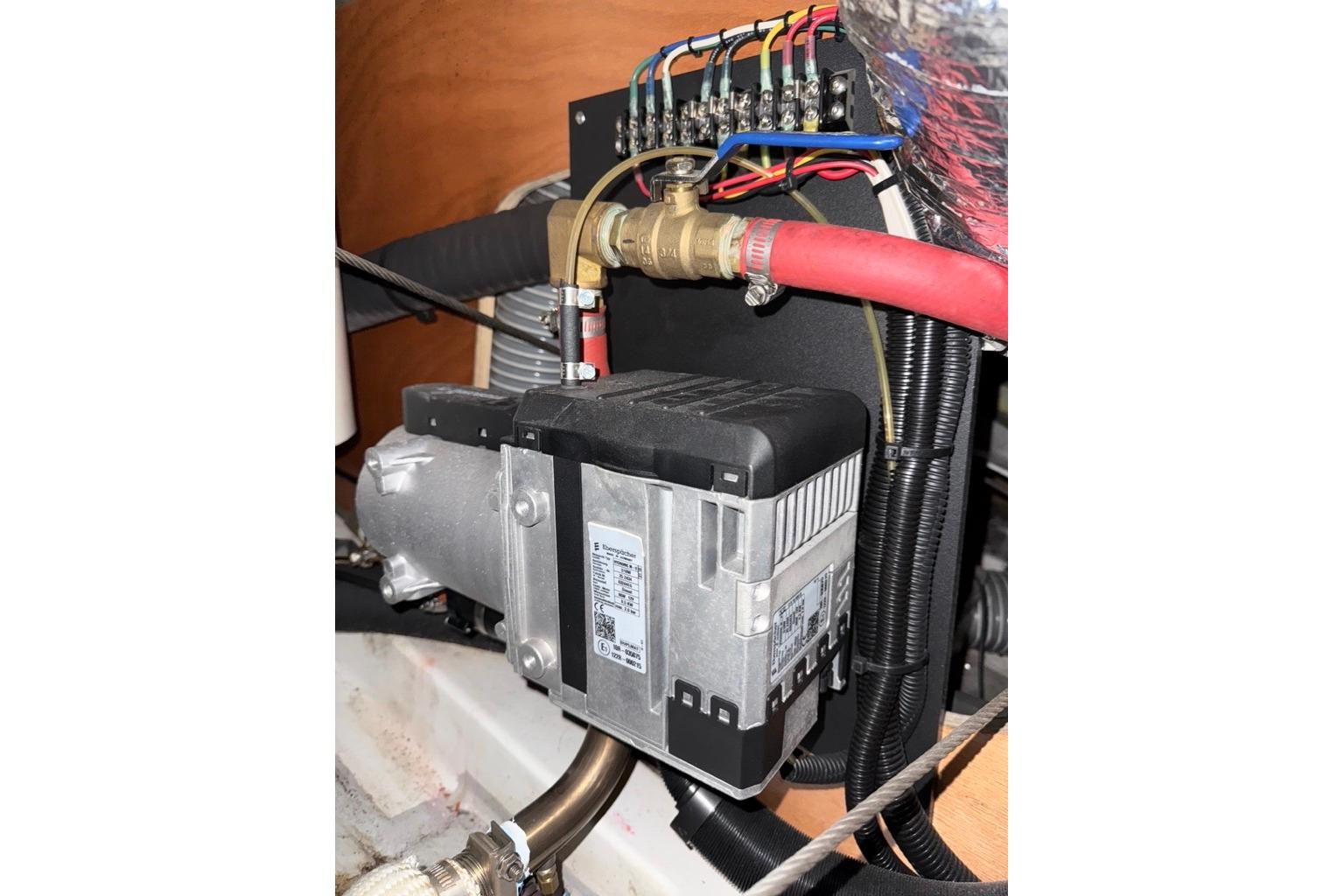

Hydronic Diesel Heating System - Epar
Lithium Battery Bank 2 X 220 amp/hr (2017)
